About ATOMSTACK :
100% laser engraving machine manufacturer located in China, welcome to visit our factory whenever you like! It is important to know that our factory do not just sell "boxes", but we offer support and advice to get the best results with the laser engraver you choose. We are always available to provide the spare parts you need with your laser engraving machine .You could reply on us for the consistent quality and service!
About Tax:
we do not including any tax and duty!
About customs charging fee . nobody can control , every country customs has different Import and export tariff system.
About Maintenance:
All machines have 13 months warranty against manufacturing defects,buy it with confidence. If any breakdown, send us the working video, we shall offer solutions for you. If the item was damaged during transportation or cannot be used normally, pls do not hesitate to contact us and provide us the photos and working video, we will give a partial refund or send the spare parts for free.

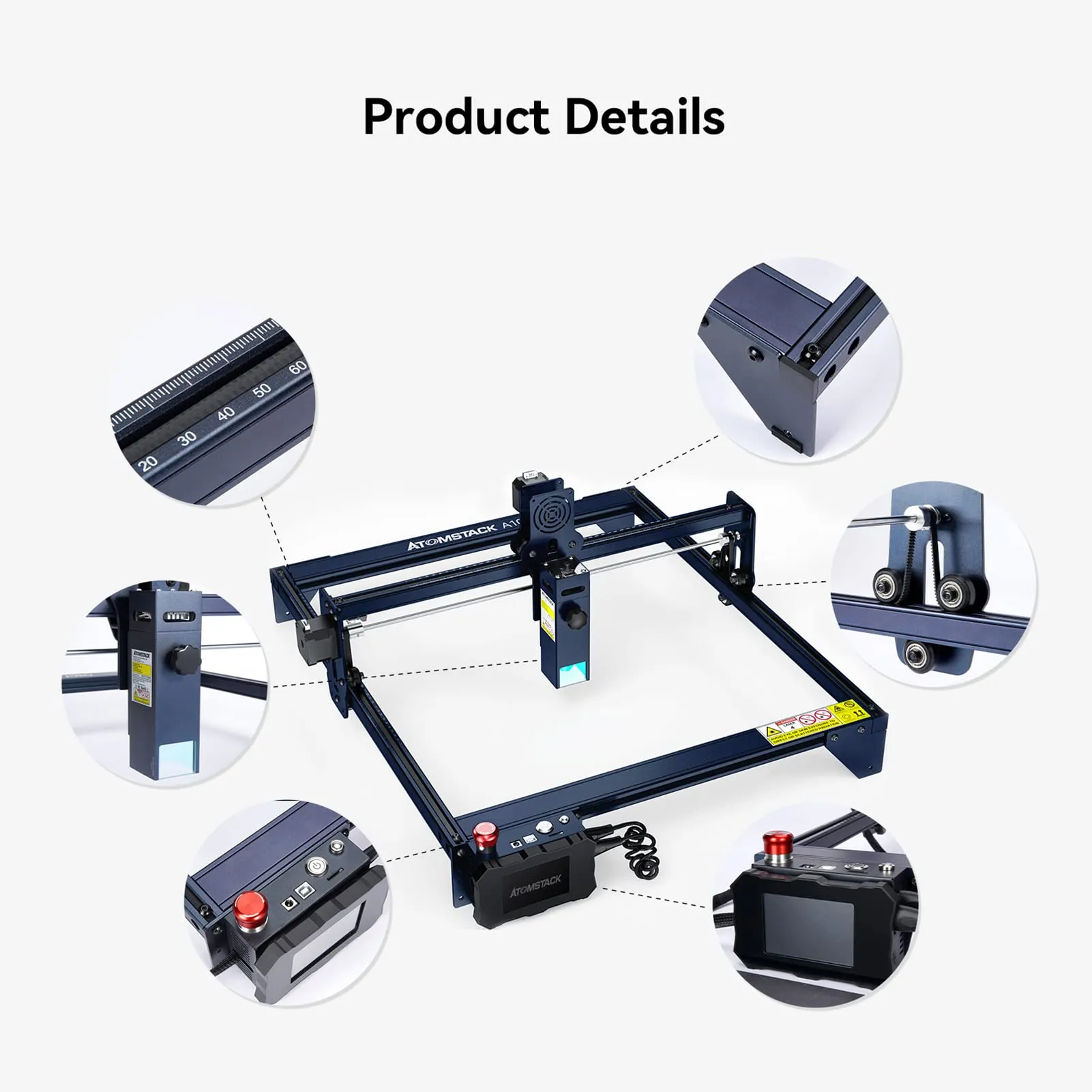

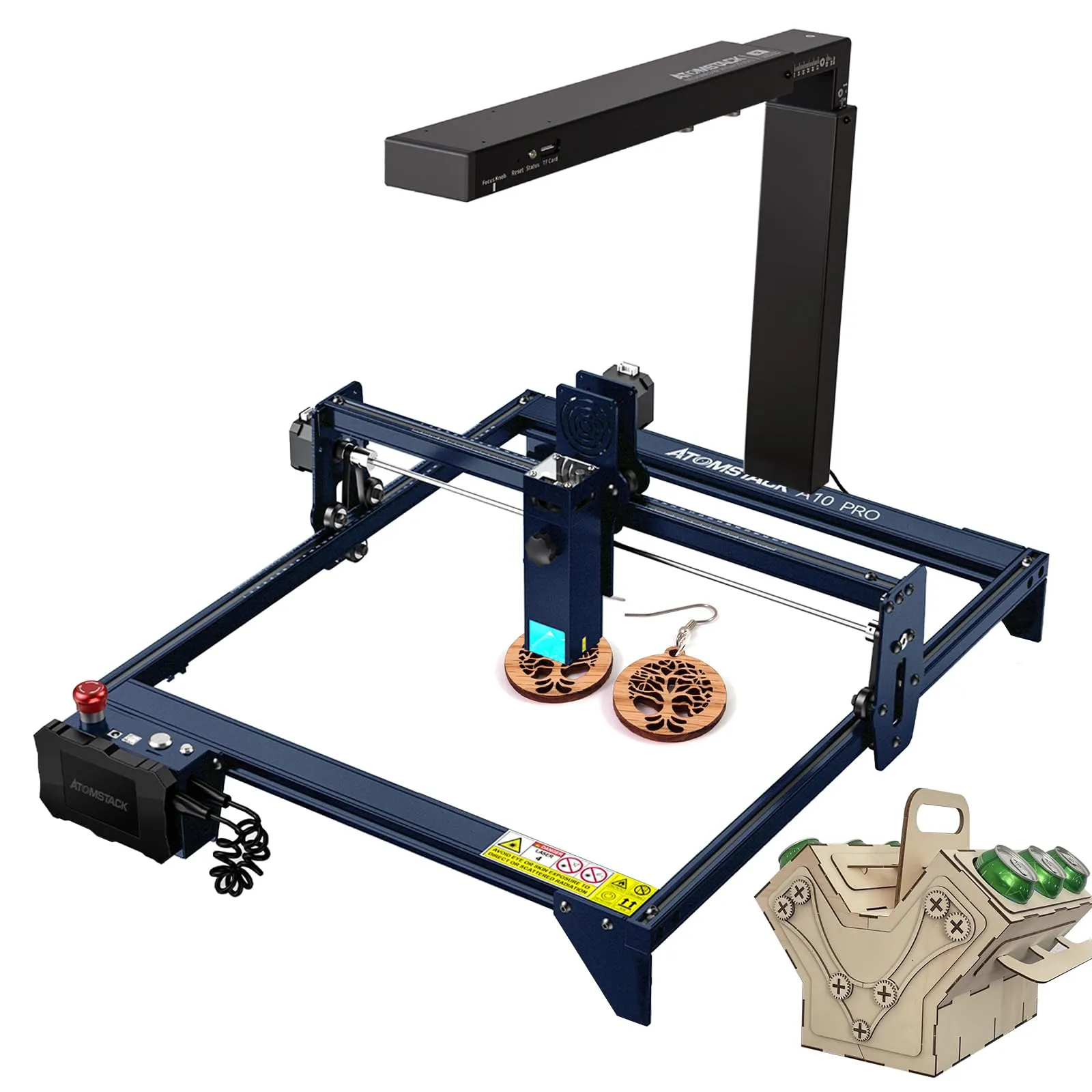

ATOMSTACK A10 Pro Laser Engraver 50W with Wireless AC2 Lightburn Camera, Offline Engraving Cutting Machine for Wood, Acrylic, Plastic, Leather etc.
Specifications:
Laser power: 50W
Laser output optical power: 10-11W
Laser wavelength: 455 ± 5 nm
Engraving accuracy: 0.01mm
Focusing method: fixed focus laser, free focus
Engraving size: 410 x 400 mm
Engraving/cutting material:
Engraving materials: wood, bamboo, cardboard, plastic, leather, circuit board, aluminum oxide, non-reflective coating and painted metal, mirrored 304 stainless steel, glass, ceramic, cotton cloth, slate;
Cutting material: cardboard, non-woven fabric, wood board, acrylic, some thin plastic boards, sponge;
Laser Protective Cover: There is a protective cover on the laser to protect the user's eyes without the need to wear additional safety glasses. At the same time, pets are prevented from grabbing the laser dot
Operating Software: For LaserGRBL, LightBurn, support for Win XP/Win 7/Win 8/XP/Win 10 system
Supported file formats: NC, BMP, JPG, PNG, DXF
Data transfer method: USB connection
Power supply: International standard power input: 100-240V AC, 50/60Hz Output: 12V, 5A
Stopper: Yes
Reset switch: Yes
AC2 Camera Specifications:
Connection method: Type-C WiFi
WiFi frequency band: 2.4GHz and 5GHz
Focus method: manual focus
Pixel: 2 MP (1920 * 1080)
Resolution: Main stream: 1080P, Substream: 640*360
Sensor: 1/2,9" CMOS-Sensor
Video processing: H.264 video encoding
Power supply: DC5V/1A
Photography range: Up to 400 x 400 mm
Software: Lightburn / AtomStack
- 【Higher Laser Power】The ATOMSTACK A10 Pro laser cutting engraving machine has a laser power of 50W and an optical laser output power of 10-11W. The anodized aluminum alloy structure design makes the machine more sturdy and durable. The solid structure allows the engraving machine to maintain precision even during fast operation.

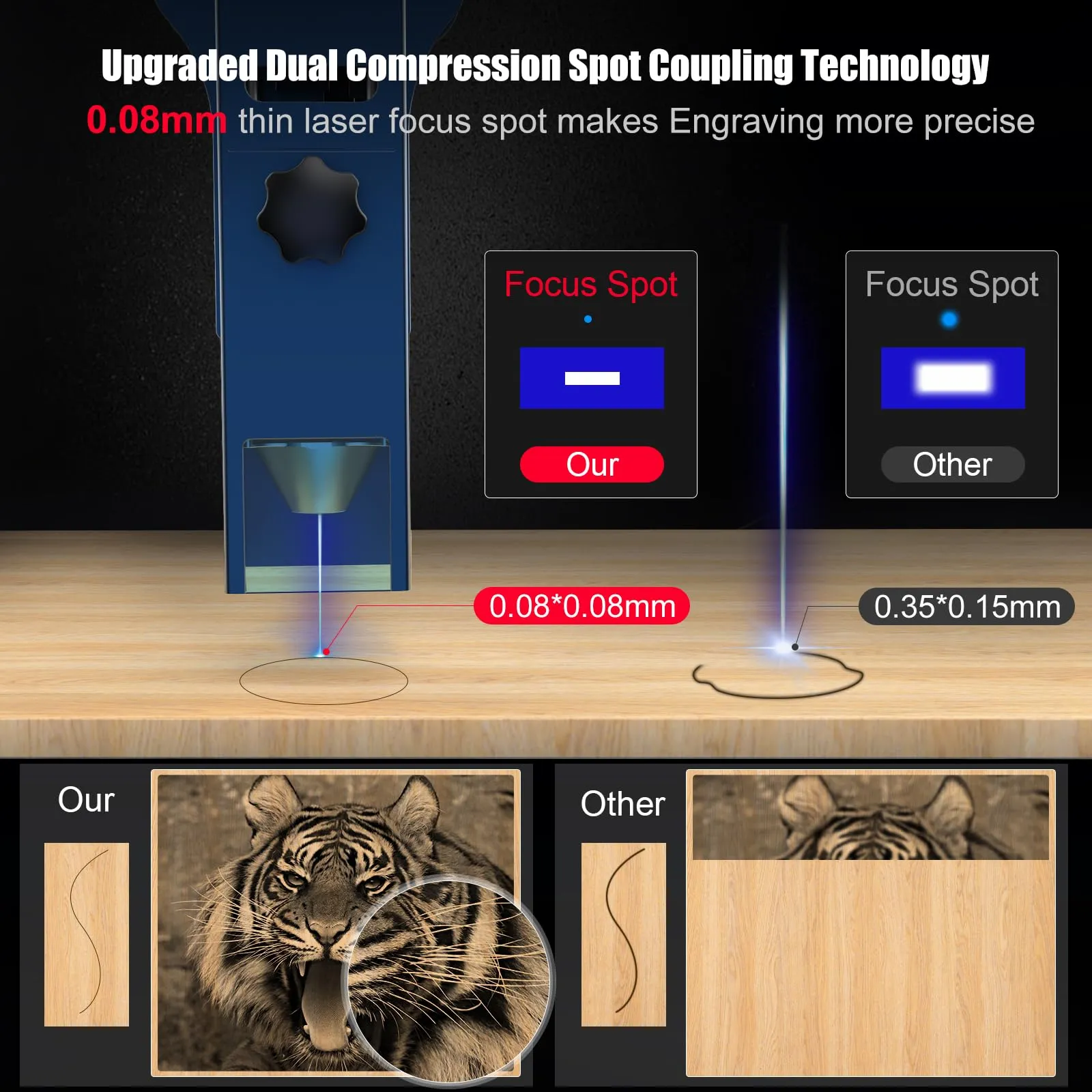

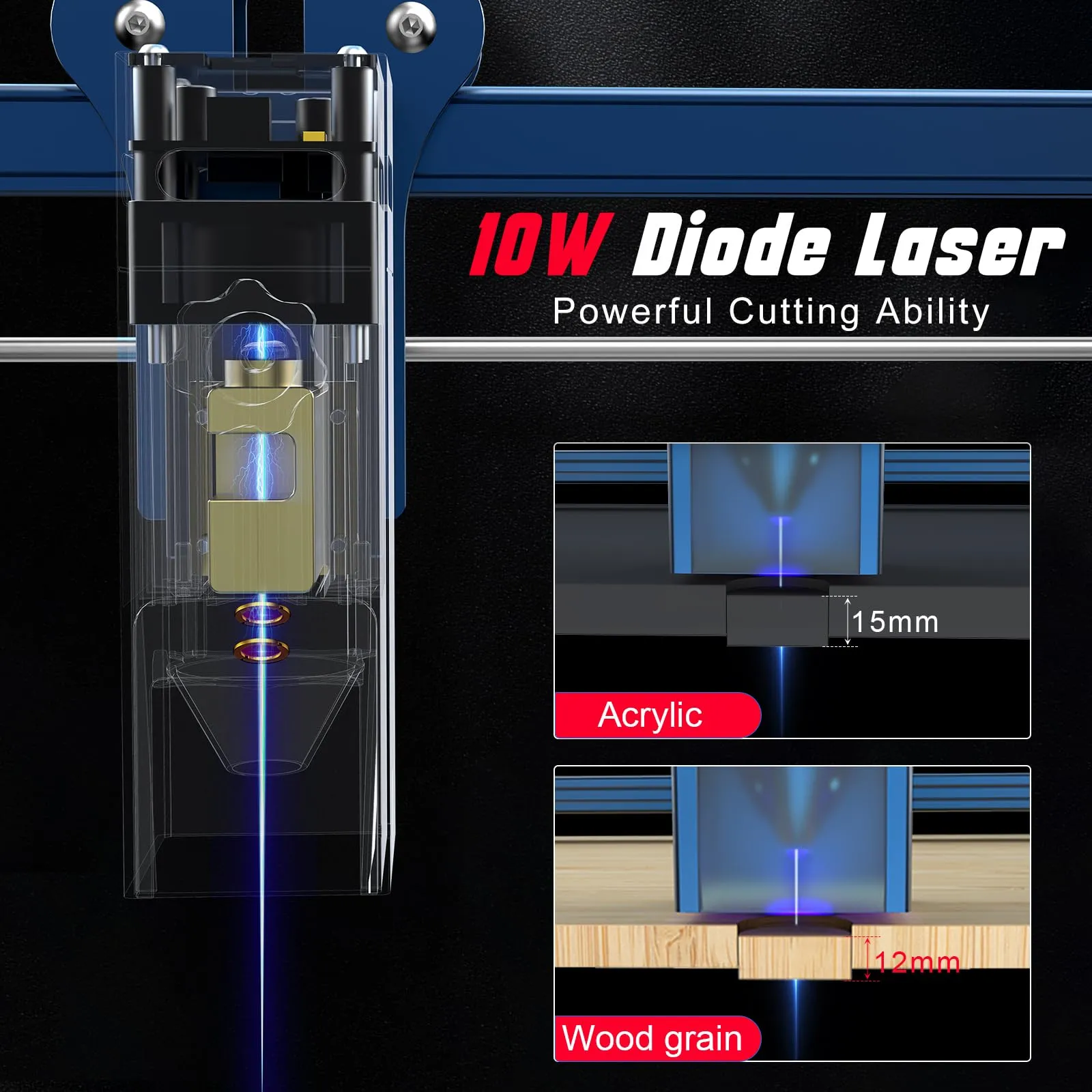

- 【Improved Dual Compression Spot Coupling Technology】ATOMSTACK A10 Pro 50W laser engraver, the ultra-fine laser focus range is reduced to 0.06*0.08mm, and the high-density laser can easily cut 12mm thick wooden boards and 15mm thick black acrylic; It can engrave mirror stainless steel metal, ceramic and glass directly. The engraving and cutting speed is 40% faster than the normal model.

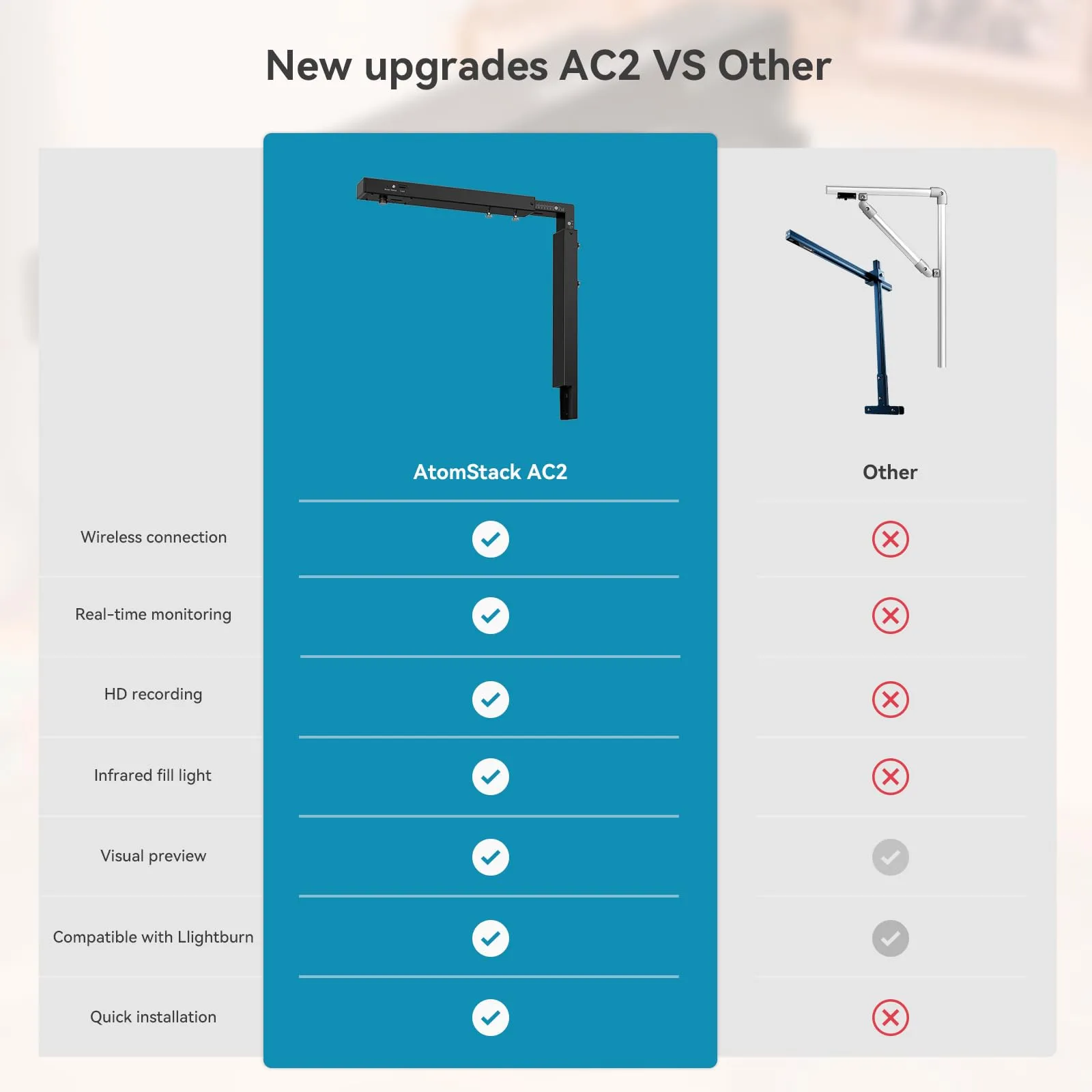

- 【AC2 Camera】Atomstack AC2, solve the problem of irregular pattern positioning, design directly on the surface of the object. After simple software calibration, it allows precise localization of objects with an error of less than 1 mm. It supports 2.4GHz and 5GHz WiFi for real-time monitoring and can record high-resolution 1080P images.
- 【Precision Laser Engraving】0.01mm engraving accuracy, double compressed point technology reduces the laser point to 0.06mm to achieve finer image engraving, and ATOMSTACK A10 pro uses an integrated screw rod instead of a combined coupling. The stepper motor and screw rod are integrated, making the laser movement more precise, giving you precise and fine engraved models.

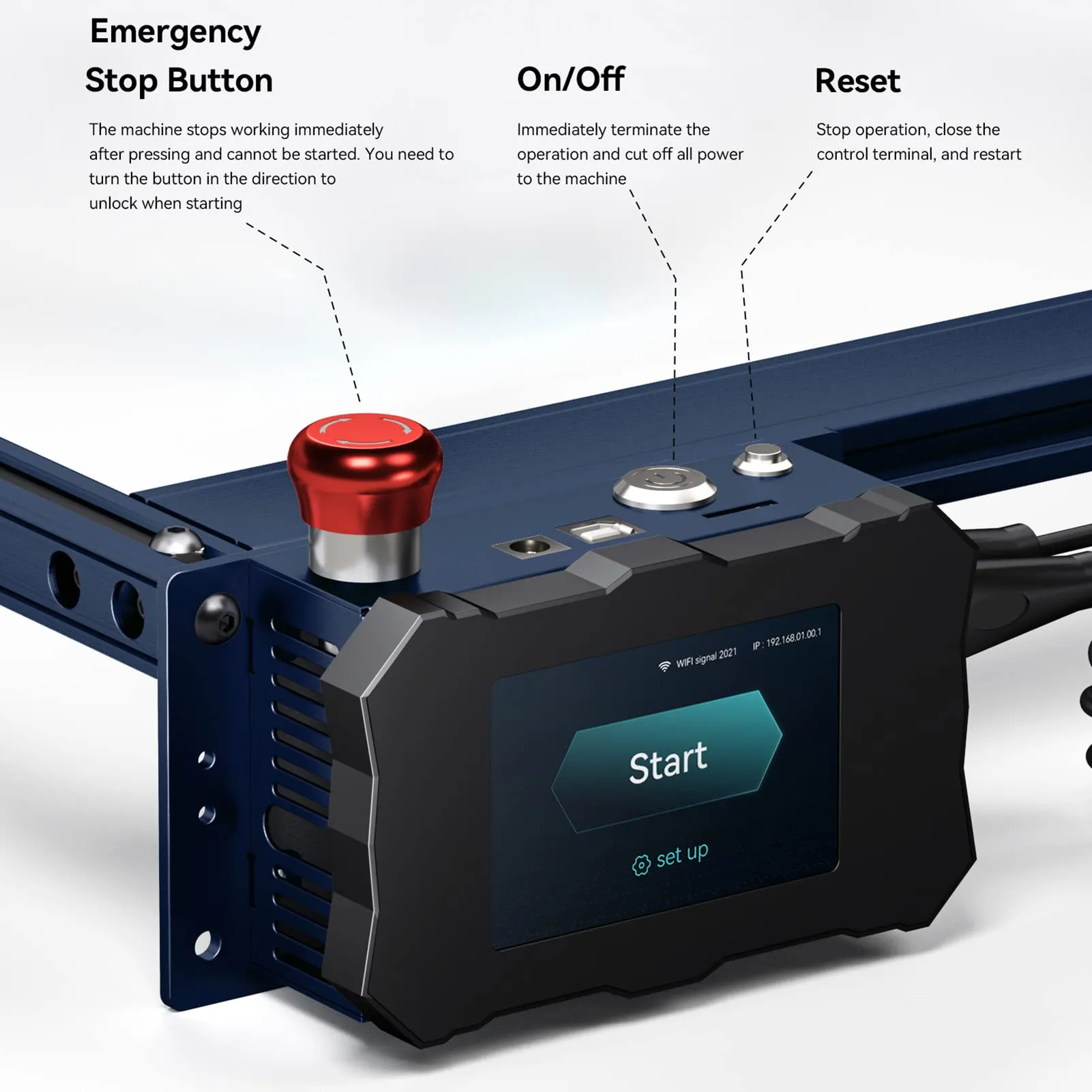

- 【Safe Design】Intelligent limit switch design, limit switches are installed on both X-axis and Y-axis. When the engraving stroke is maximum, the limit switch is automatically triggered to protect the laser and avoid collision. Use panoramic filter The glass protective cover plays a very good role in protecting the eyes as it filters 97% of UV rays.
Kindly Reminder A10 PRO ,S10 PRO , X7 PRO all are same machine, just frame color is different ,we will ship as the available stock we have, thanks for your order !
