About ATOMSTACK :
100% laser engraving machine manufacturer located in China, welcome to visit our factory whenever you like! It is important to know that our factory do not just sell "boxes", but we offer support and advice to get the best results with the laser engraver you choose. We are always available to provide the spare parts you need with your laser engraving machine .You could reply on us for the consistent quality and service!

About Tax:
we do not including any tax and duty!
About customs charging fee . nobody can control , every country customs has different Import and export tariff system.

About Maintenance:
All machines have 13 months warranty against manufacturing defects,buy it with confidence. If any breakdown, send us the working video, we shall offer solutions for you. If the item was damaged during transportation or cannot be used normally, pls do not hesitate to contact us and provide us the photos and working video, we will give a partial refund or send the spare parts for free.

🔥 Specifications:

Model number: ATOMSTACK A5 Pro

Engraving Area: within 410*400mm

Electric power: 40W

Laser output power: 5.5W

Wave Length: 445 ± 5nm

Engraving accuracy: 0.01mm

Focusing method: fixed focus laser, no need to focus

Input Voltage: AC100-240V, 50/60Hz

Output Voltage: DC12V, 5A

Machine net weight: 3.426kg

Package weight: 5.072kg

Machine size: 570*600*270mm

Packing size: 620*345*130mm

Carving materials: wood, bamboo, cardboard, plastic, leather, MDF, slate, lacquered metal, mirror stainless steel;

Cutting material: cardboard, non-woven fabric, veneer, acrylic, some thin plastic board, sponge, MDF, leather;

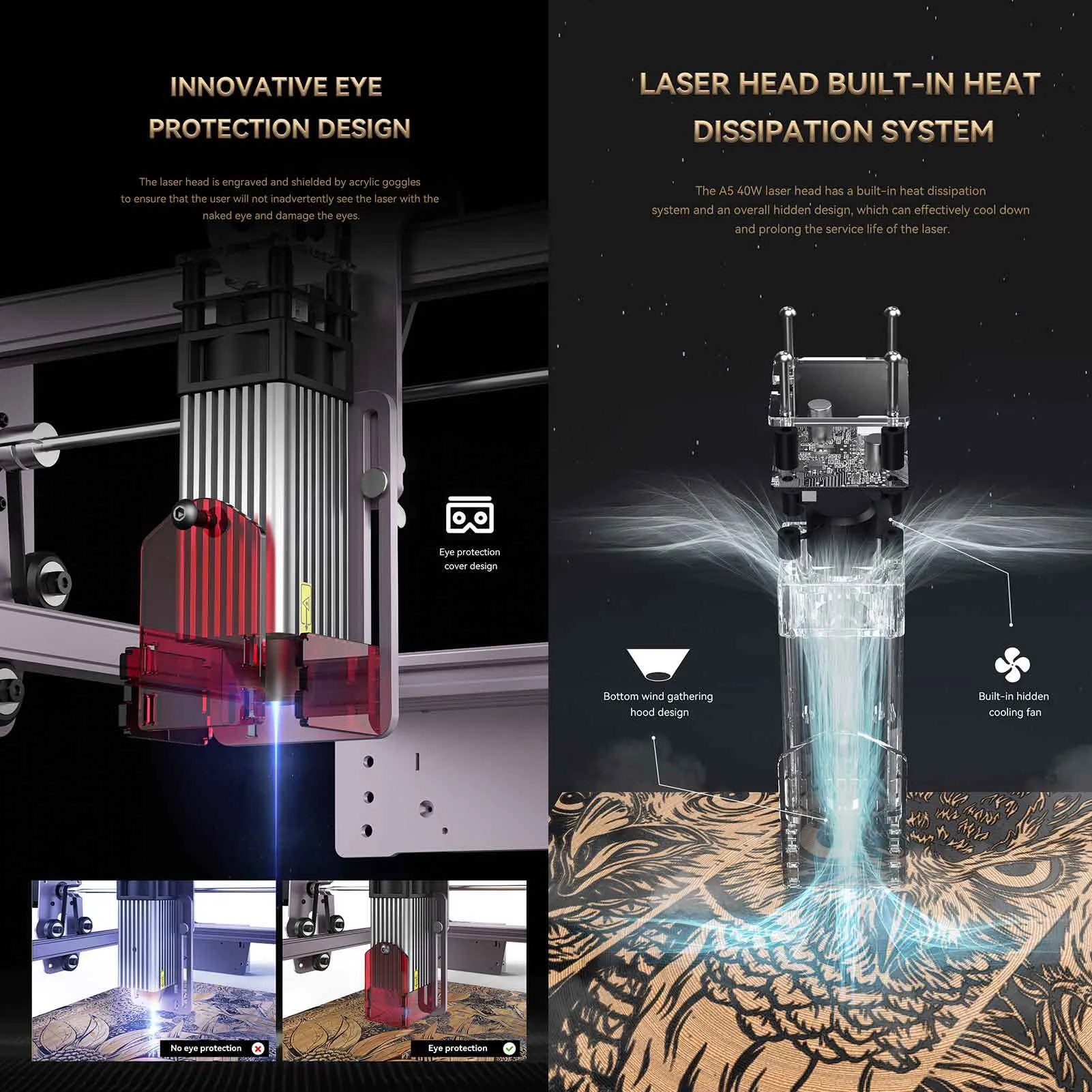

Eye protective cover: Protect the user's eyes and prevent pets from grabbing the laser spot.

Operating software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / Win 10 system.

Input Format: NC, BMP, JPG, PNG, DXF, etc.

Data transmission method: USB connection.

Production Description:

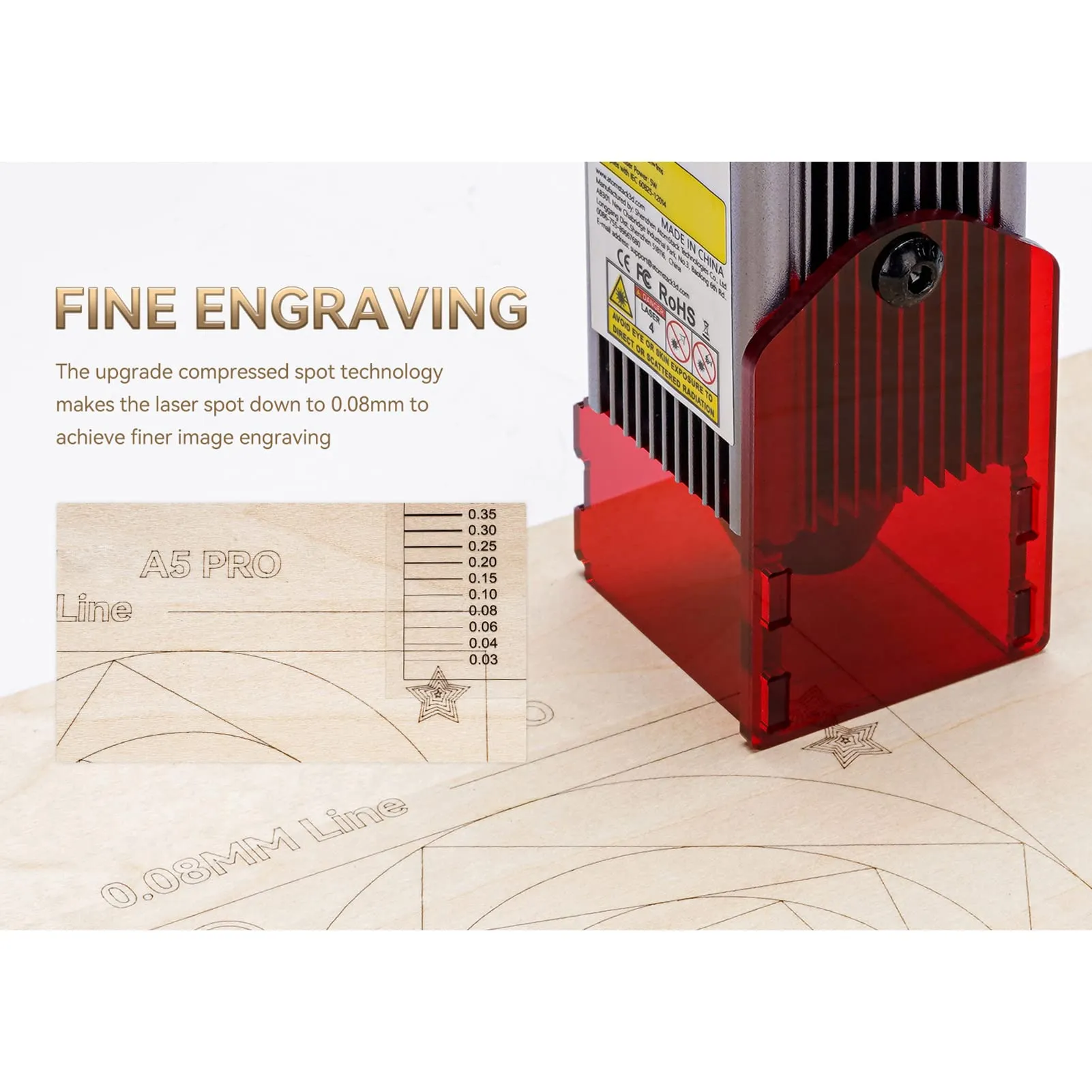

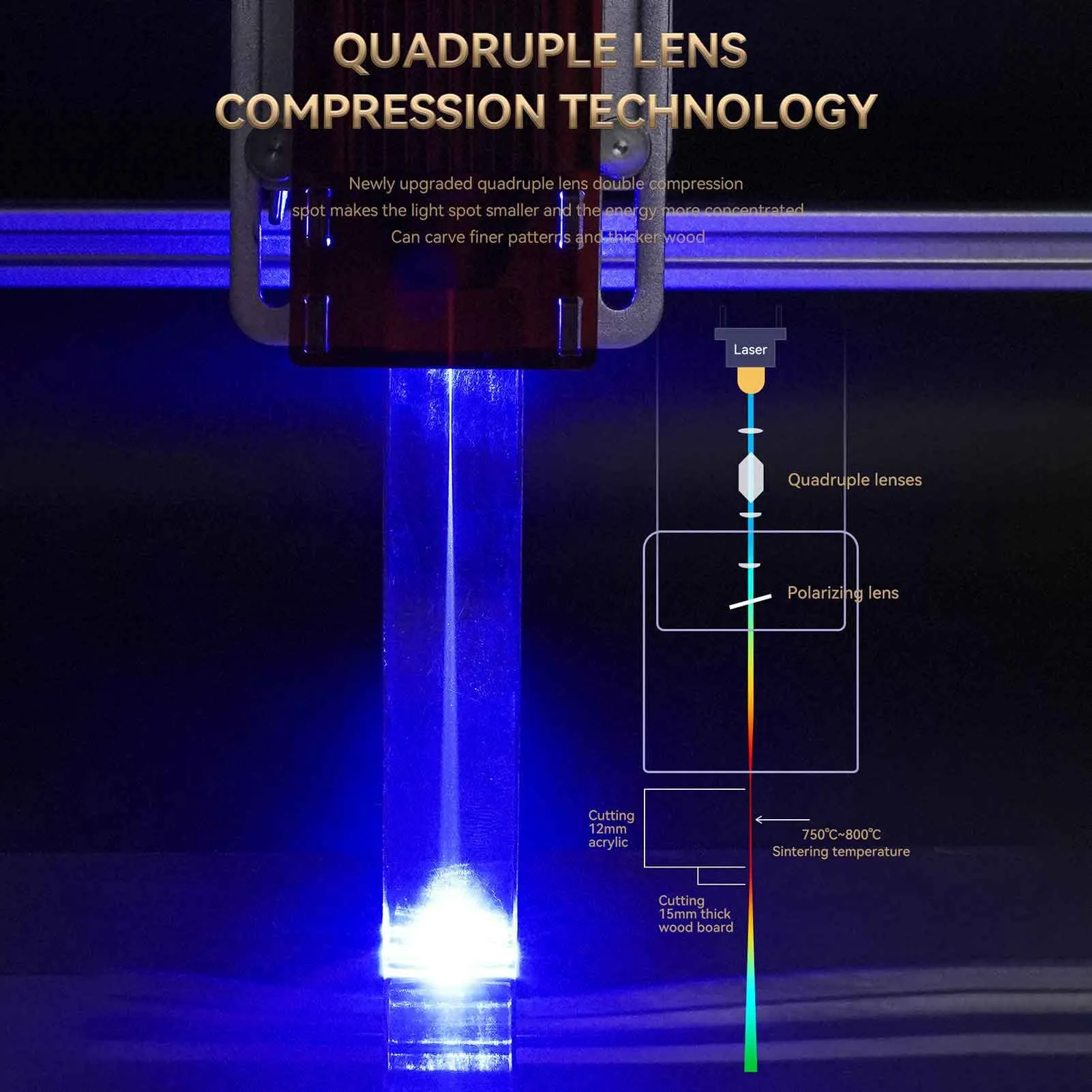

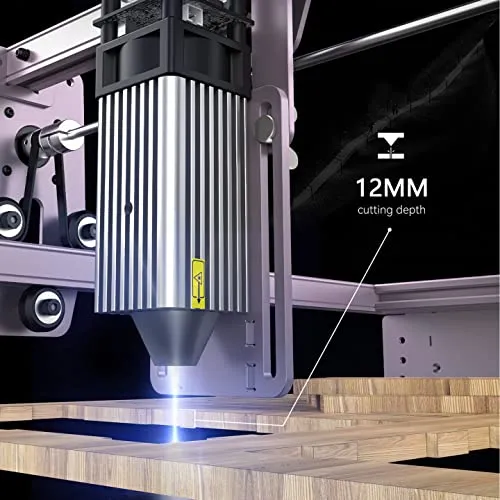

• Ultra-fine compression laser: Atomstack A5 PRO laser engraving machine 40W, the laser power is 5-5.5W, and the ultra-fine laser focus area is reduced to 0.03mm². The high density laser can easily handle 12mm thick wood and black acrylic, cardboard, non-woven fabric, veneer, etc. Cutting. It can directly engrave smooth stainless steel, metal, ceramics, wood, bamboo, cardboard, plastic, leather, circuit board, aluminum oxide and other materials.

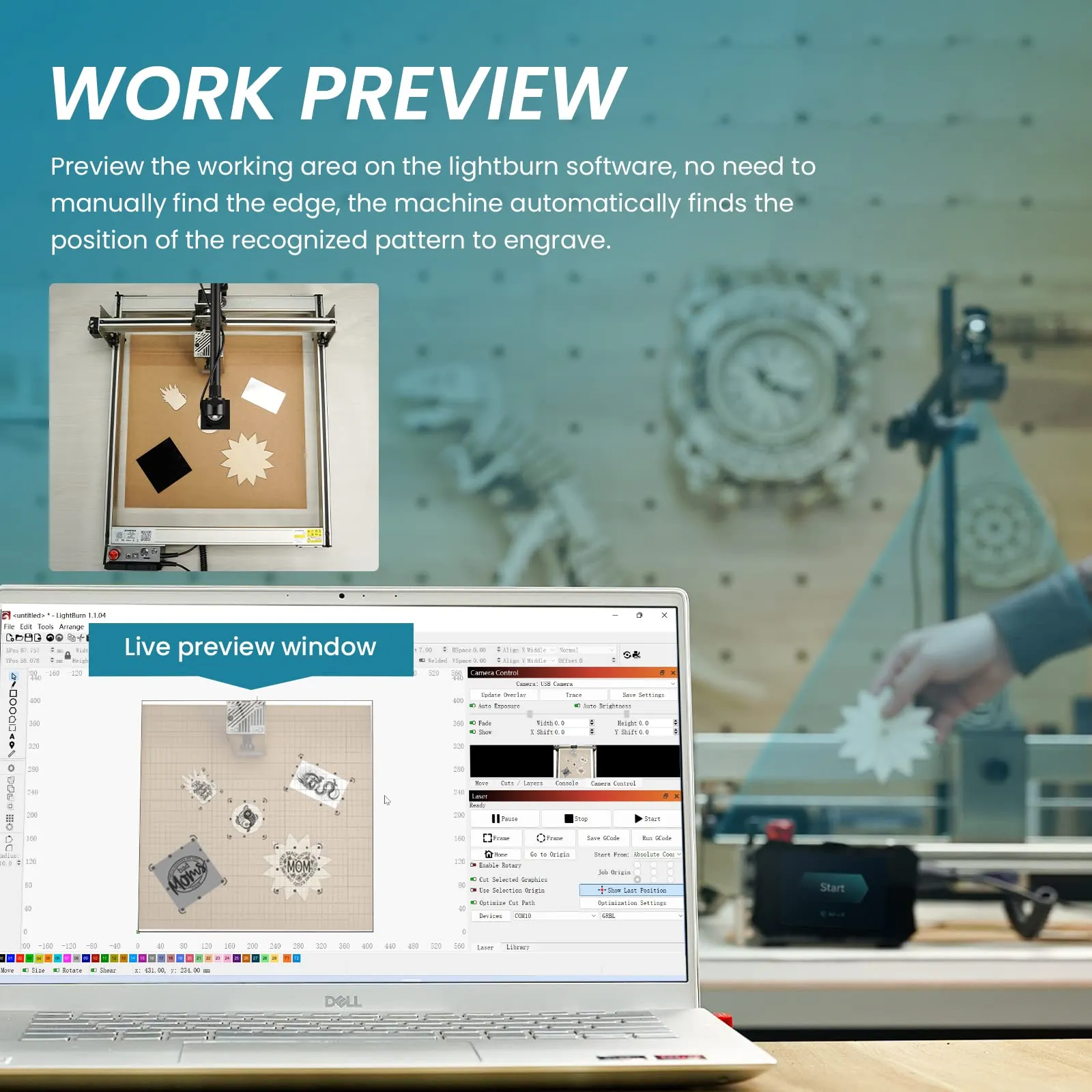

• Atomstack AC1 Time Lapse Camera: The Atomstack camera is a real industrial digital camera with 500W pixels and high resolution that ensures accurate positioning when used. Working example, straightening the engraving material is no longer necessary. The atom stack maker camera perfectly solves the positioning problem of specially shaped patterns. Time lapse shooting with the camera allows you to record and share the entire process of completion of work.

• Integrated screw rod and precision scale axis: The X axis and Y axis contain a precision scale line, which allows you to quickly perform a length measurement. The large engraving interval of 410 x 400mm can meet your different engraving needs. The machine uses an integrated threaded rod instead of a combined coupling. The stepper motor and threaded rod are integrated, which makes the laser movement more accurate and the clutch more durable.

• Improved high-power fixed focus laser: it can be engraved without adjusting the focal length; The focus area of the new laser is 50% smaller than that of other ordinary lasers and is suitable for both precision engraving and high energy cutting. At the same time, the laser power of the fixed focus laser is more stable than that of the zoom laser.

• Wide compatibility: The machine can be compatible with various adult engraving software, such as LaserGRBL, LightBurn, support for Win XP/Win 7/Win 8/XP/Win 10 and also Mac system (LightBurn), support engraving file formats NC, BMP, JPG, PNG, DXF, etc.
