About ATOMSTACK :
100% laser engraving machine manufacturer located in China, welcome to visit our factory whenever you like! It is important to know that our factory do not just sell "boxes", but we offer support and advice to get the best results with the laser engraver you choose. We are always available to provide the spare parts you need with your laser engraving machine .You could reply on us for the consistent quality and service!
About Tax:
we do not including any tax and duty!
About customs charging fee . nobody can control , every country customs has different Import and export tariff system.
About Maintenance:
All machines have 13 months warranty against manufacturing defects,buy it with confidence. If any breakdown, send us the working video, we shall offer solutions for you. If the item was damaged during transportation or cannot be used normally, pls do not hesitate to contact us and provide us the photos and working video, we will give a partial refund or send the spare parts for free.

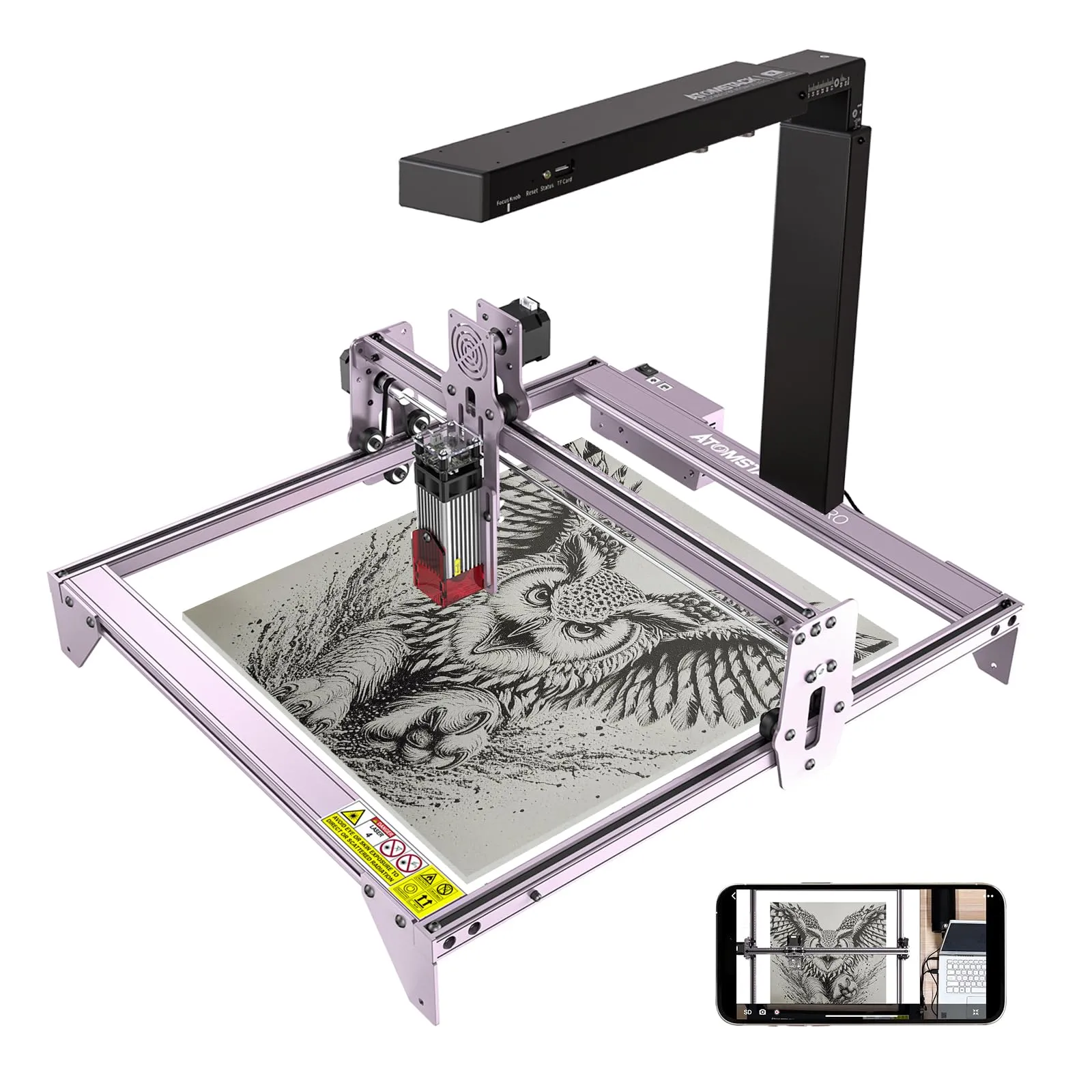

ATOMSTACK A5 Pro 40W Laser Engraver with AC2 Wireless Lightburn Camera, DIY Engraving Cutting Machine for Wood Metal 410x400mm
Specifications:
Product model: ATOMSTACK A5 PRO 40W
Laser power: 40W
Laser optical output power: 5-5.5W
Laser wavelength: 455 ± 5 nm
Engraving accuracy: 0.01mm
Focusing method: fixed focus laser, free focus
Carving size: 410*400mm
Engraving/cutting material:
Engraving material: wood, bamboo, cardboard, plastic, leather, circuit board, aluminum oxide, non-reflective coating and painted metal, blackened utility knife;
Cutting material: cardboard, fleece, veneer, acrylic, sometimes thin plastic plate;
Laser Protective Cover: There is a protective cover on the laser to protect the user's eyes without the need to wear additional safety glasses. At the same time, you prevent pets from grabbing the laser dot
Operating software: LaserGRBL, LightBurn, support for Win XP/Win 7/Win 8/XP/Win 10 system
Supported file formats: NC, BMP, JPG, PNG, DXF
Data transfer method: USB connection
Power supply: International standard input: 100-240V AC, 50/60Hz output: 12V 5A

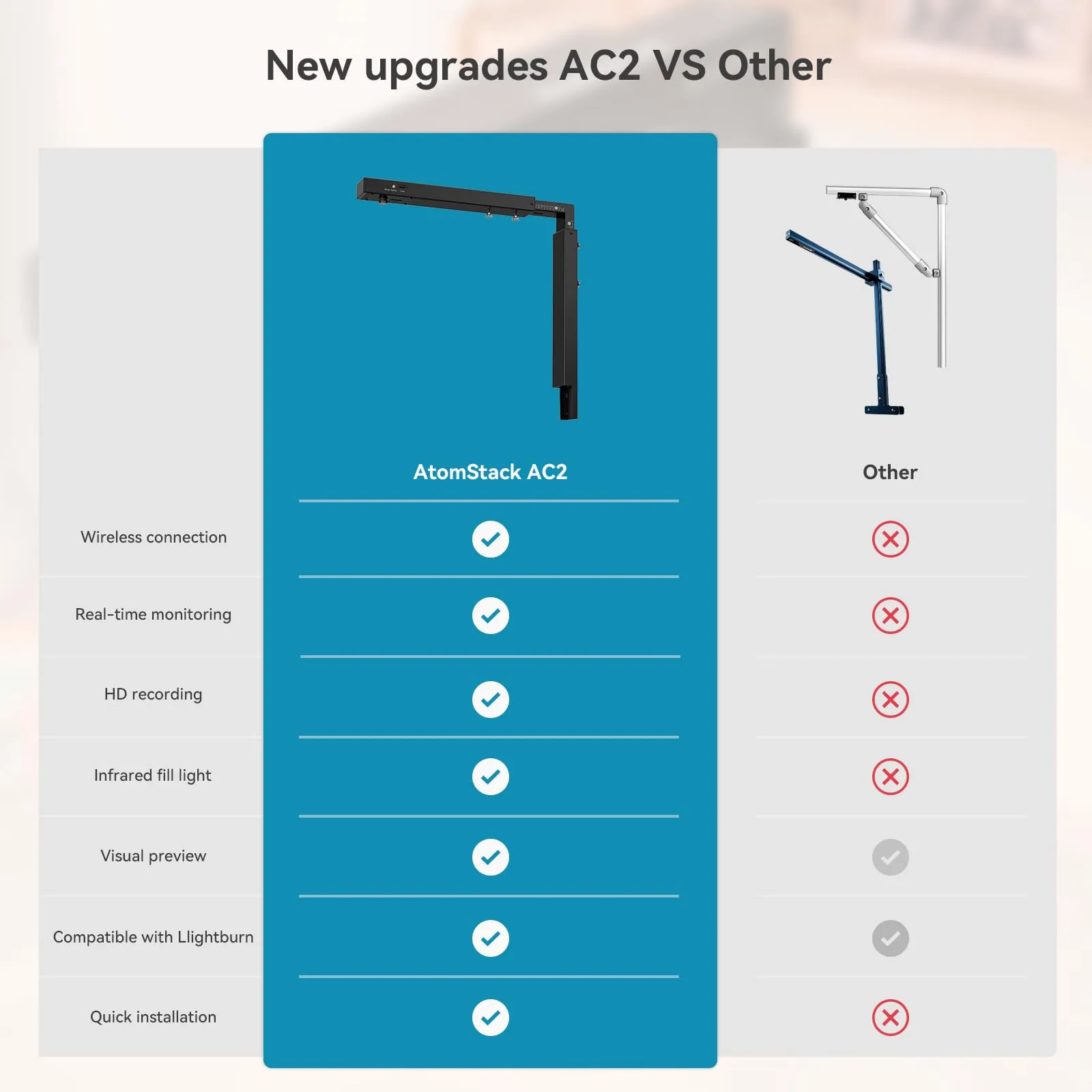

AC2 Wireless Lightburn Camera Specification:
Connectivity: Type-C WiFi
WiFi band: 2.4 GHz and 5 GHz
Focus: Manual focus
Storage: Micro SD (32G)
Pixels: 2MP (1920*1080)
Resolution: Main Stream 1080P
Sensor: 1/2.9" CMOS sensor
Video processing: H.264 video encoding
Power supply: DC5V/1A
Photography range: 400 x 400 mm
Software: Lightburn / Atomstack

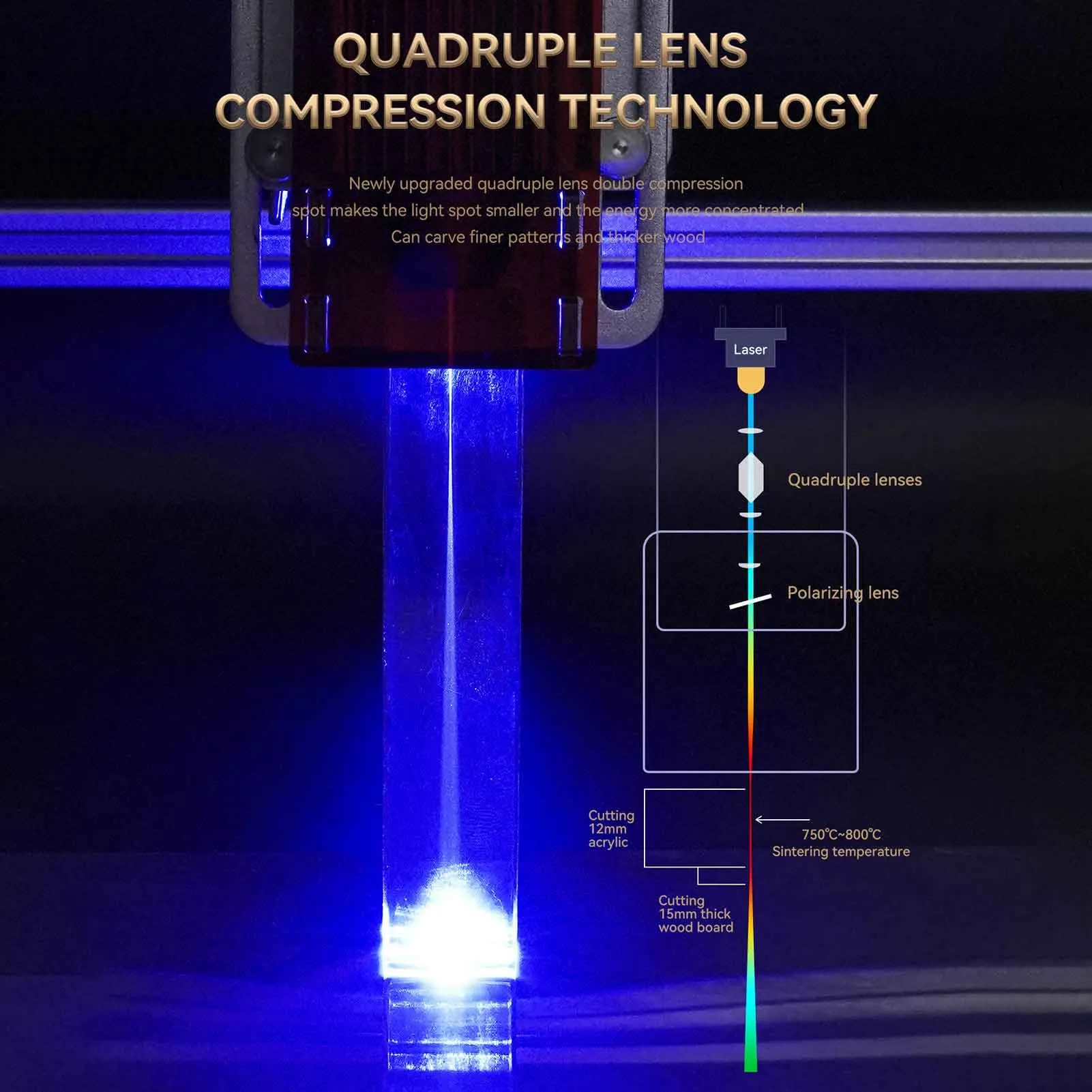

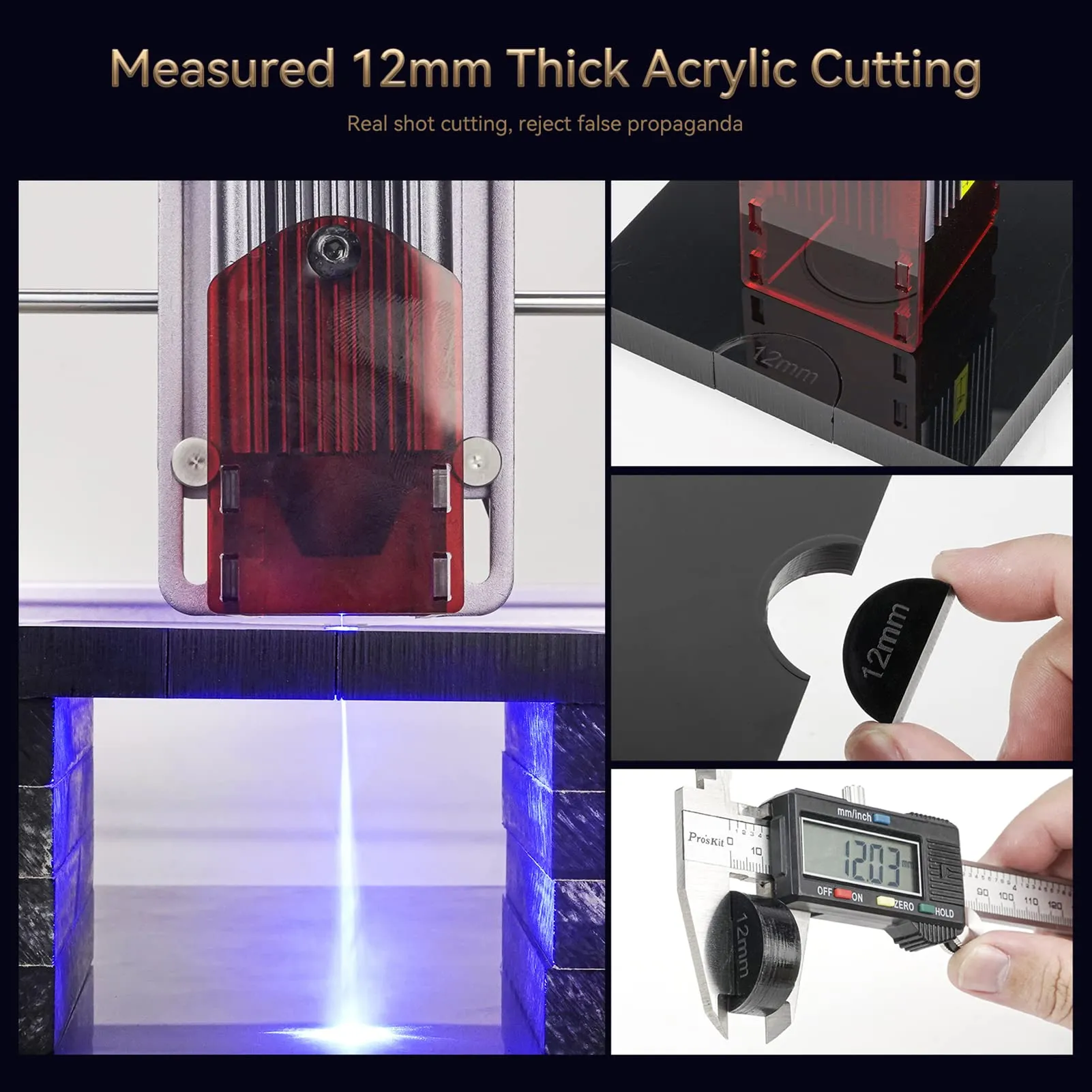

- 【Ultrafine Compression Laser】The A5 PRO laser power is 5-5.5W and the focus range of the ultrafine laser is reduced to 0.2mm². The high-density laser can easily cut 12mm thick wood and black acrylic; It can engrave smooth stainless steel metal and ceramic directly. The machine can be compatible with various sophisticated engraving software such as LaserGRBL, LightBurn.

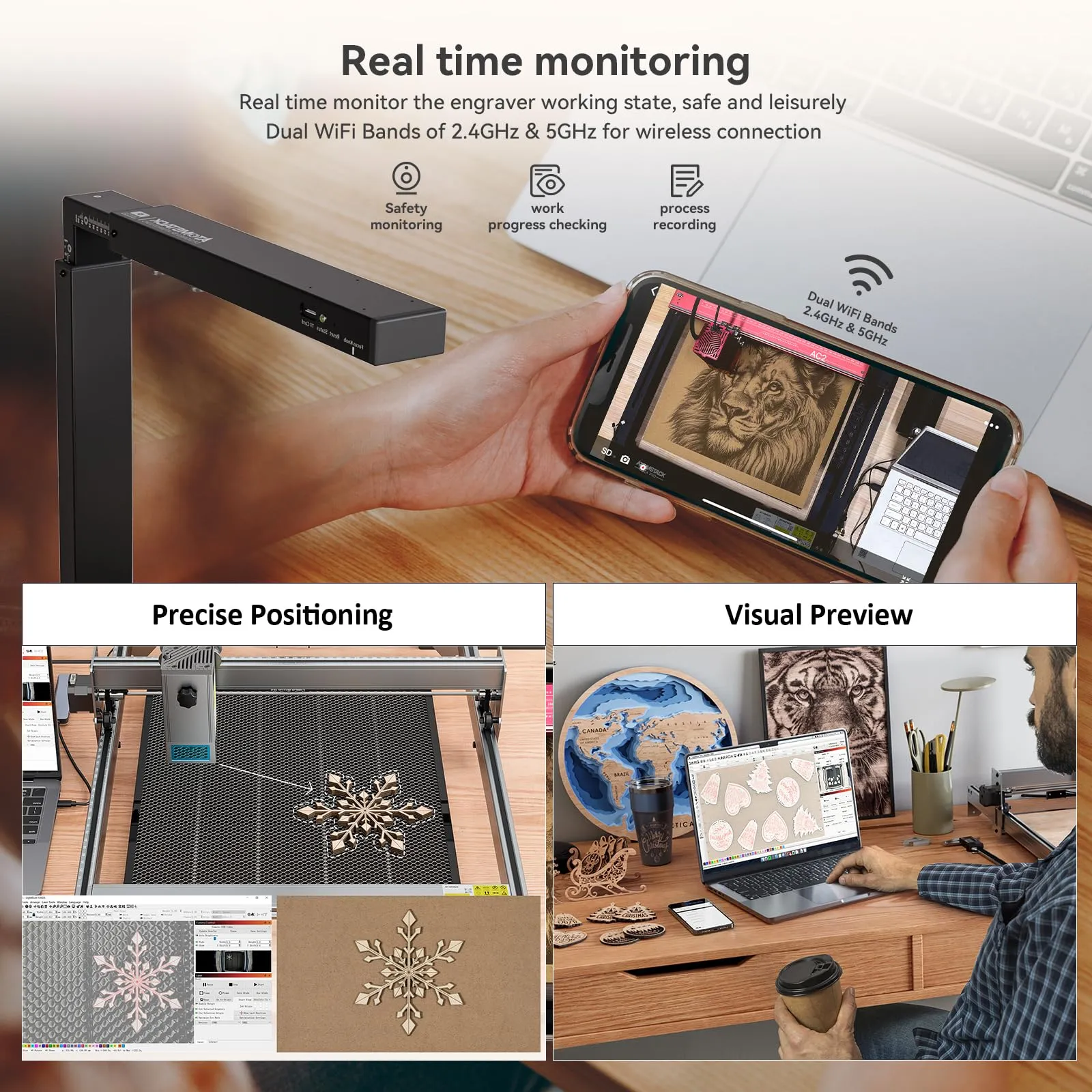

- 【Visual Preview】The Atomstack AC2 wireless camera gives your engraving machine dual vision and captures every brilliant idea. Solve the problem of irregular pattern positioning, design directly on the surface of the object, and see the results immediately. There are also functions such as precise positioning, batch engraving, real-time monitoring and high-resolution recording.
- 【Improved high-performance laser with fixed focus】Atomstack A5 pro laser engraver it can be engraved without adjusting the focal length; The focal spot area of the new laser is 50% smaller than that of other ordinary lasers and can accommodate both precision engraving and high-energy cutting. At the same time, the laser power of the fixed focus laser is more stable than that of the zoom laser.
- 【Integrated screw rod & extensive compatibility】The atomstack a5 pro laser engraving machine uses an integrated screw rod instead of a combined coupling. The stepper motor and threaded rod are integrated, which makes the laser movement more precise and the coupling more durable. Support for Win XP/Win 7/Win 8/XP/Win 10 and also support for Mac system (LightBurn), engraving file format support for NC, BMP, JPG, PNG, DXF etc.

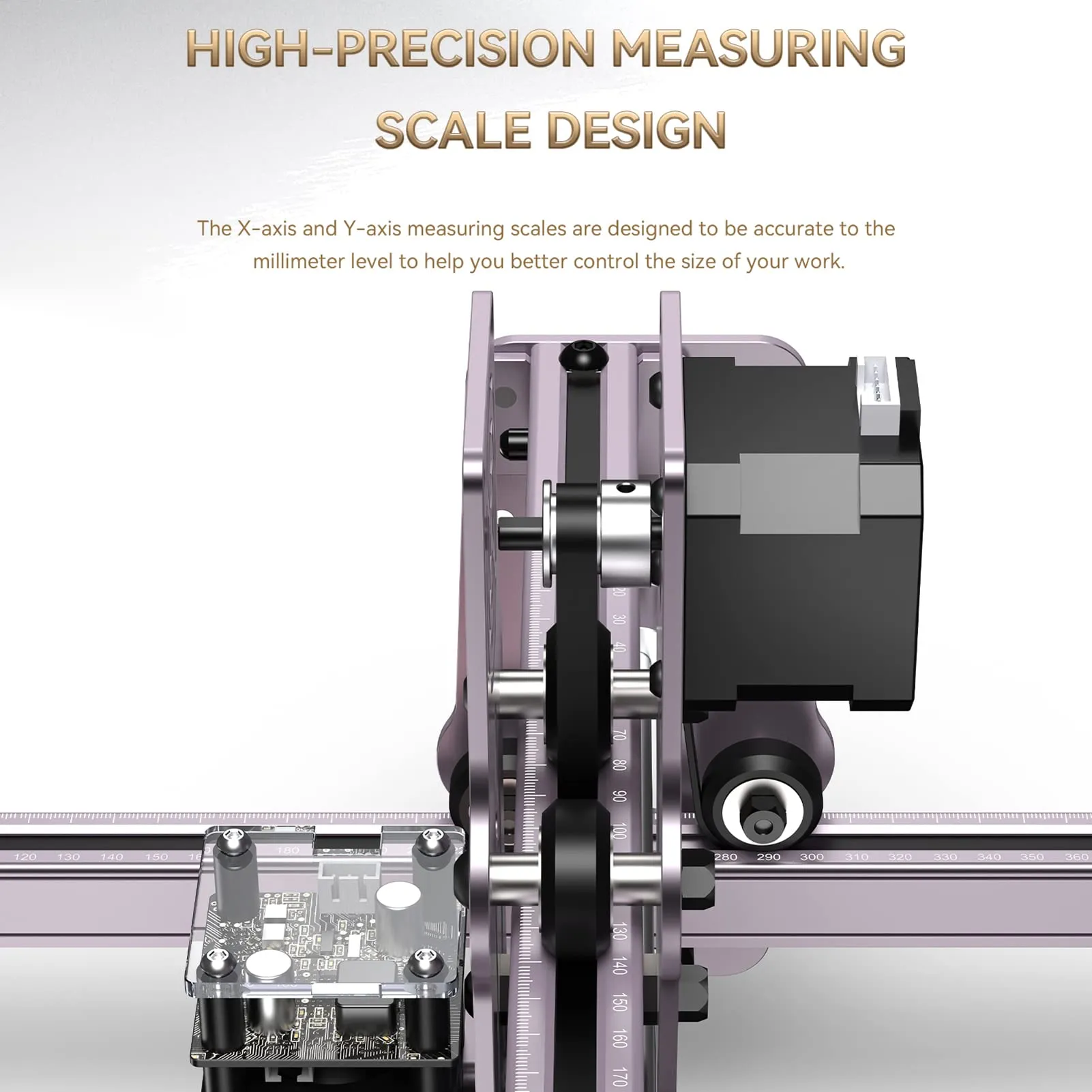

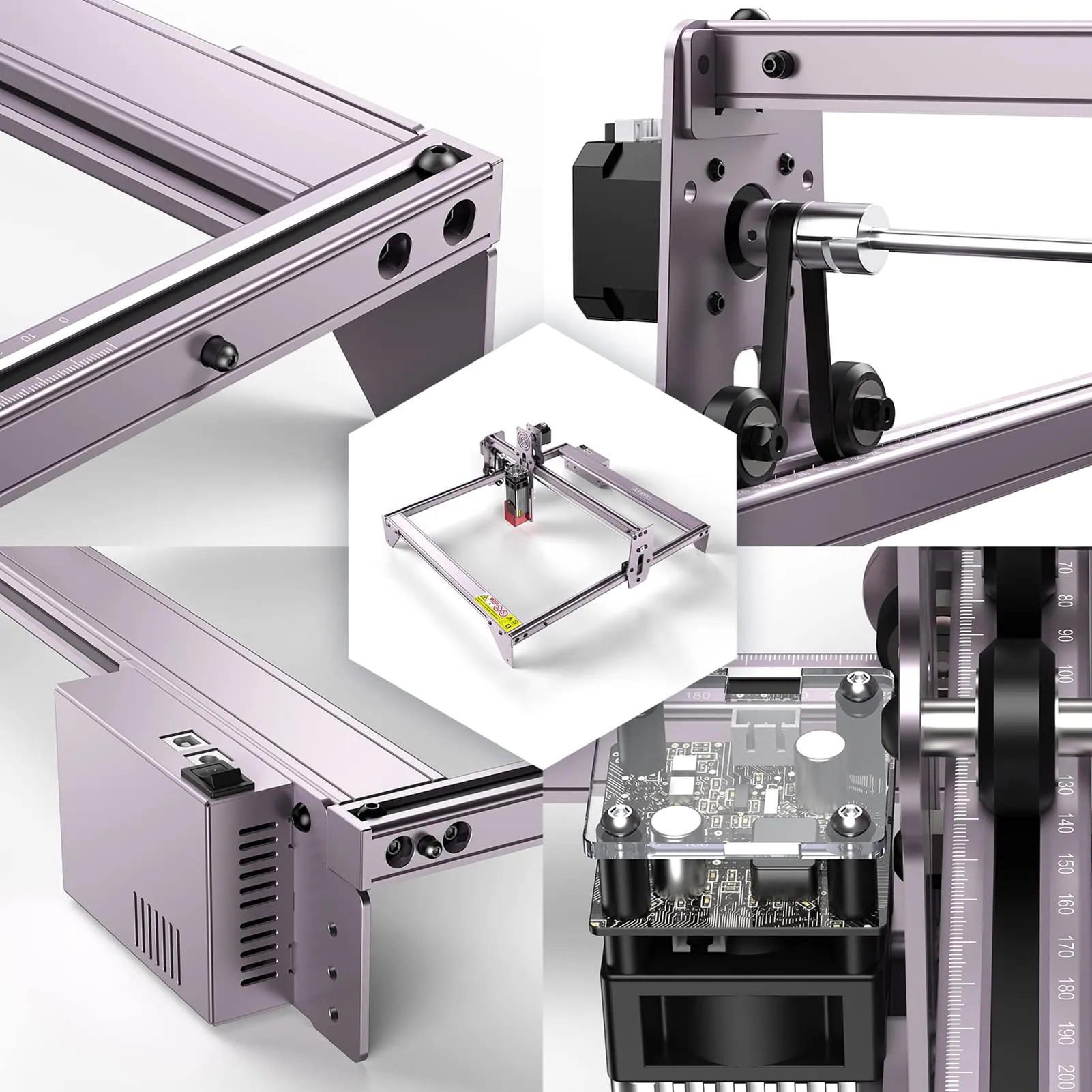

- 【Robust and easy to install construction design and precision scale axis】Atomstack A5 pro laser engraving machine 40W, anodized all-aluminum alloy construction design makes the machine more robust and durable while improving the accuracy of engraving. The entire structure is designed for quick installation and installation can be completed in 10-20 minutes. The X-axis and Y-axis contain a precision scale line that allows you to take quick length measurement.
- 【Brand new eye protection design】The A5 pro laser protection cover plays a very good role in protecting your eyes and filters 97% of ultraviolet light. You and those around you can observe the laser engraving without glasses. Reduce the cost of your safety glasses and the inconvenience of wearing safety glasses.
