About ATOMSTACK :
100% laser engraving machine manufacturer located in China, welcome to visit our factory whenever you like! It is important to know that our factory do not just sell "boxes", but we offer support and advice to get the best results with the laser engraver you choose. We are always available to provide the spare parts you need with your laser engraving machine .You could reply on us for the consistent quality and service!
About Tax:
we do not including any tax and duty!
About customs charging fee . nobody can control , every country customs has different Import and export tariff system.
About Maintenance:
All machines have 13 months warranty against manufacturing defects,buy it with confidence. If any breakdown, send us the working video, we shall offer solutions for you. If the item was damaged during transportation or cannot be used normally, pls do not hesitate to contact us and provide us the photos and working video, we will give a partial refund or send the spare parts for free.
🔥 Specifications:

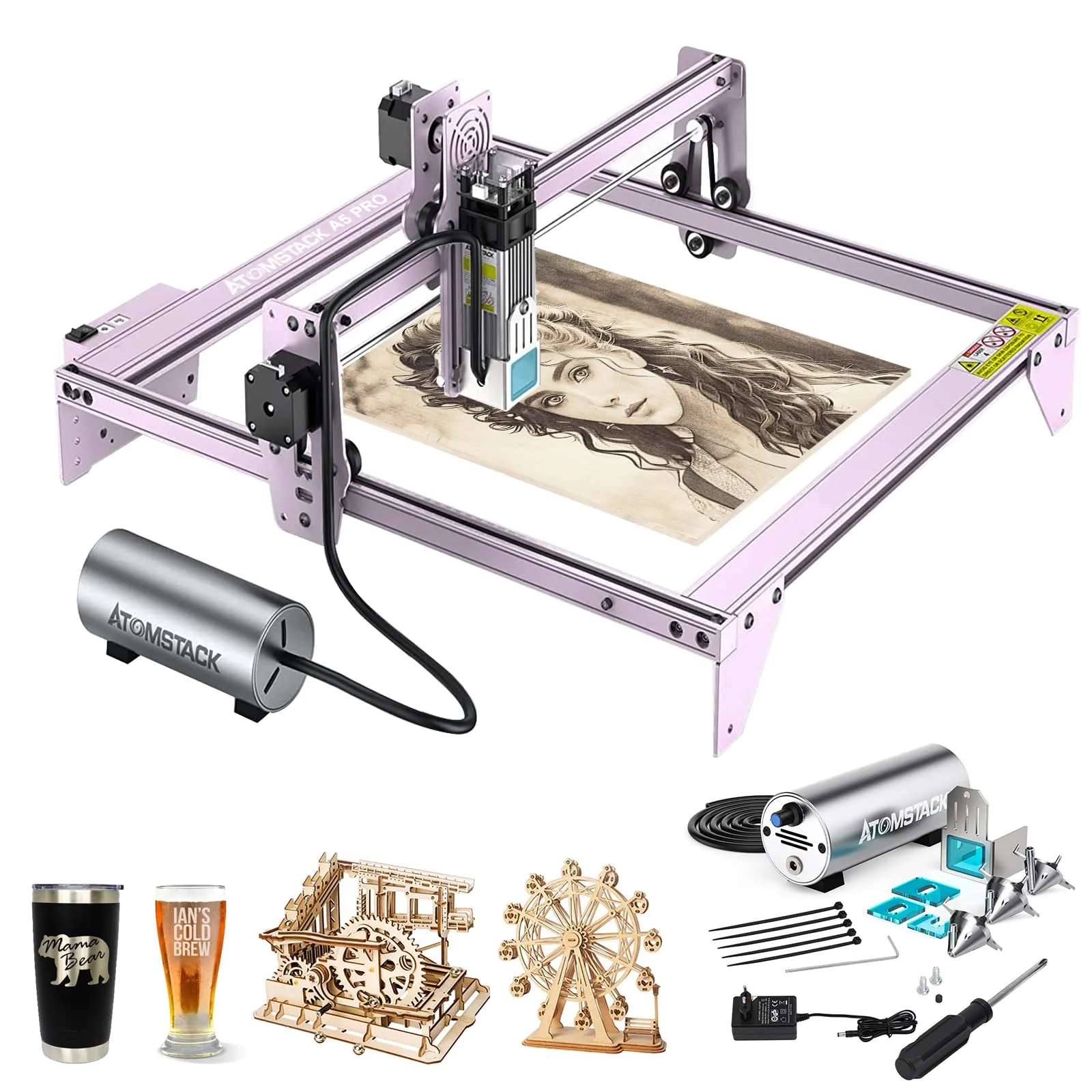

Model number: ATOMSTACK A5 Pro
Engraving Area: within 410*400mm
Electric power: 40W
Laser output power: 5.5W
Wave Length: 445 ± 5nm
Engraving accuracy: 0.01mm
Focusing method: fixed focus laser, no need to focus
Input Voltage: AC100-240V, 50/60Hz
Output Voltage: DC12V, 5A
Machine net weight: 3.426kg
Package weight: 5.072kg
Machine size: 570*600*270mm
Packing size: 620*345*130mm
Carving materials: wood, bamboo, cardboard, plastic, leather, MDF, slate, lacquered metal, mirror stainless steel;
Cutting material: cardboard, non-woven fabric, veneer, acrylic, some thin plastic board, sponge, MDF, leather;

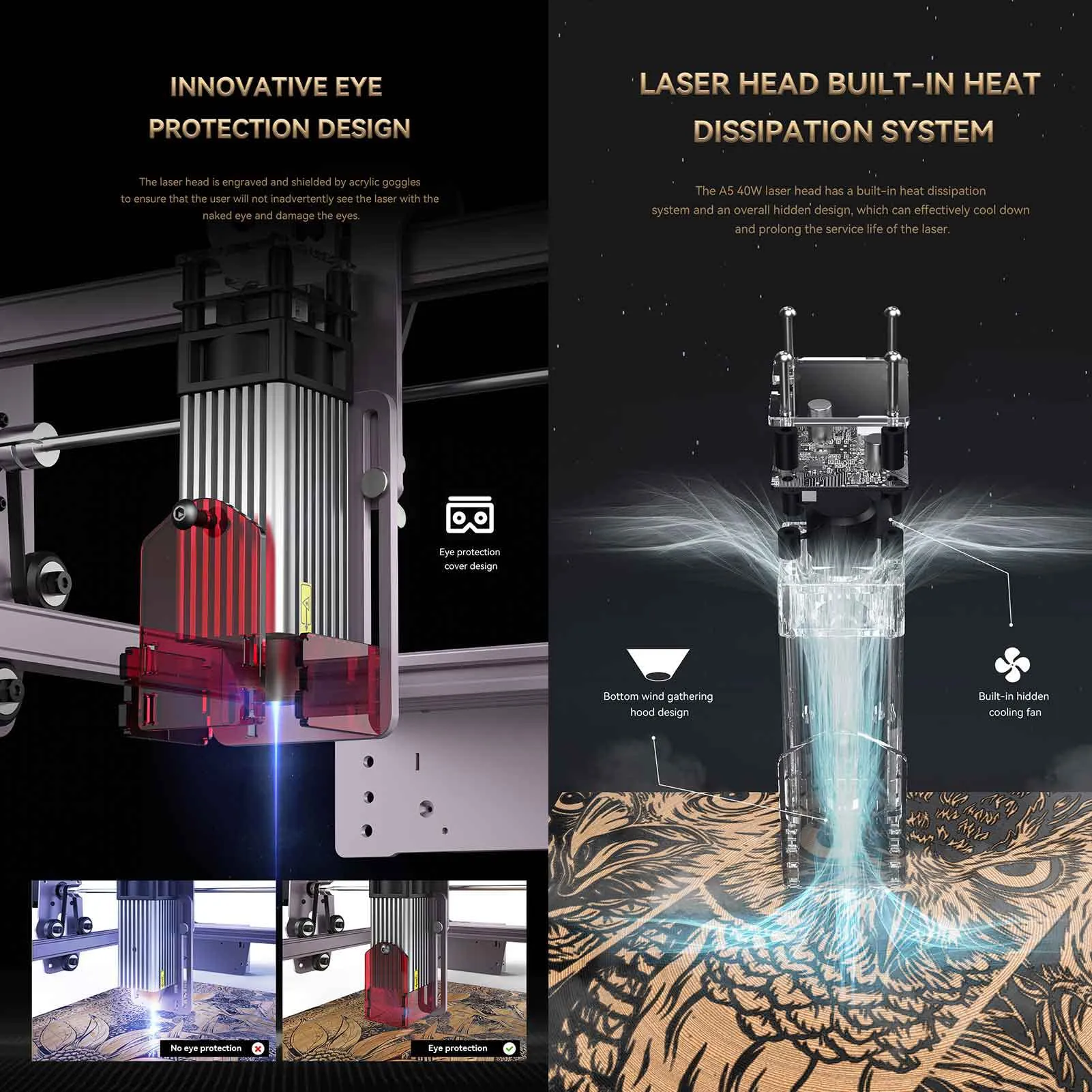

Eye protective cover: Protect the user's eyes and prevent pets from grabbing the laser spot.
Operating software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / Win 10 system.
Input Format: NC, BMP, JPG, PNG, DXF, etc.
Data transmission method: USB connection.
Production Description:
- Improved high-power fixed focus laser: it can be engraved without adjusting the focal length; The focus area of the new laser is 50% smaller than that of other ordinary lasers and is suitable for both precision engraving and high energy cutting. At the same time, the laser power of the fixed focus laser is more stable than that of the zoom laser.

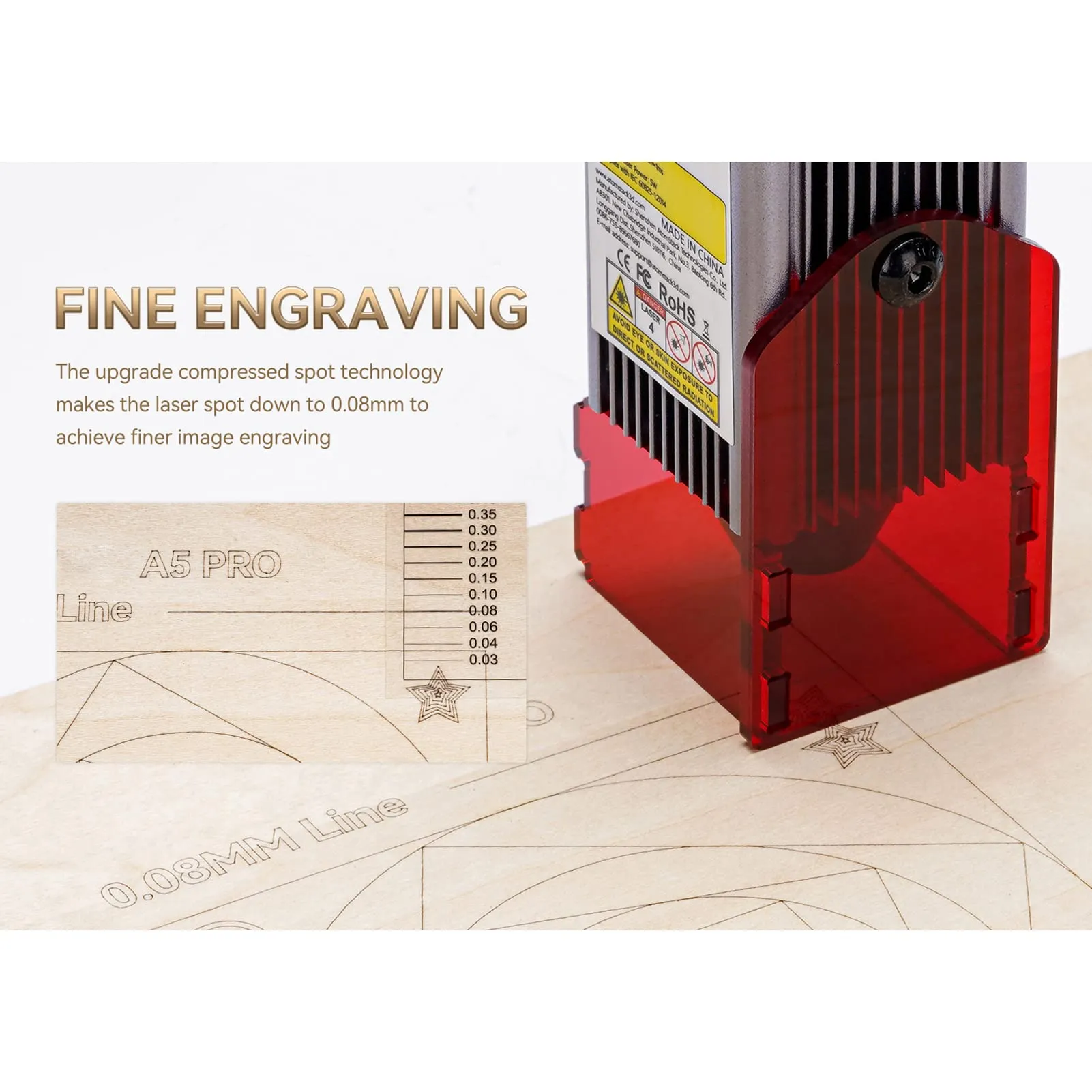

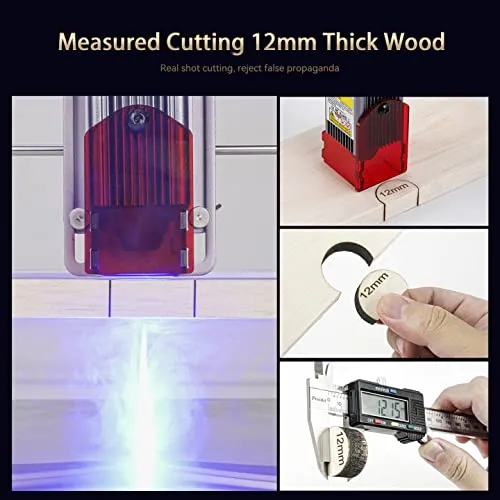

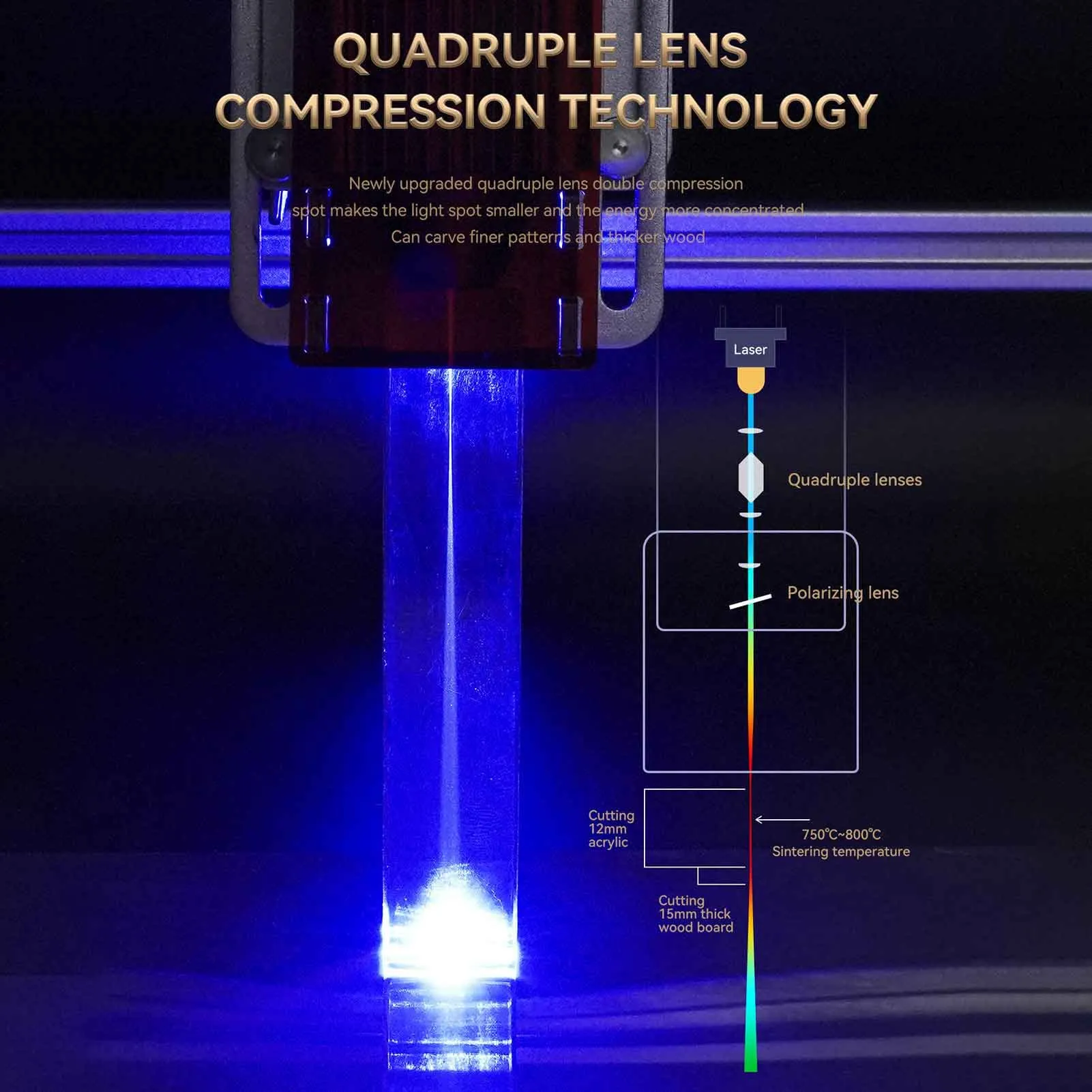

- Ultra-fine compression laser: the laser power is 5-5.5 W, and the focus area of the ultra-fine laser is reduced to 0.2 mm². The high density laser can easily cut 12mm thick wood and black acrylic; It can engrave smooth stainless steel and ceramic directly.

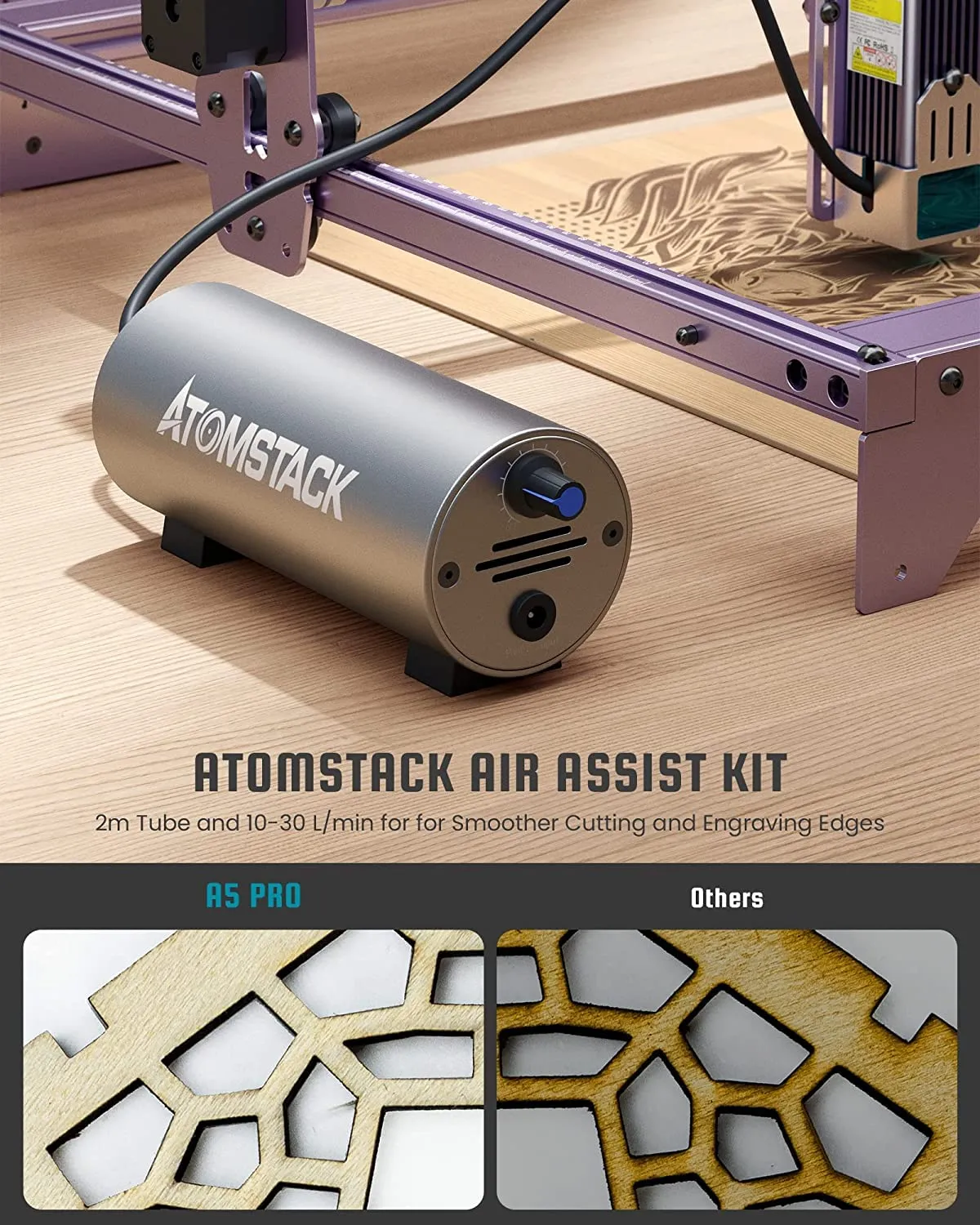

- Air Assist: ATOMSTACK's air-assisted accessory, equipped with an adjustable air flow of 10-30l/min, can effectively remove smoke and dust generated during laser cutting/engraving, prevent smoke and dust from causing weakening of laser energy, and ensure the stability of laser energy, and make your engraving/carving work stand out the best.

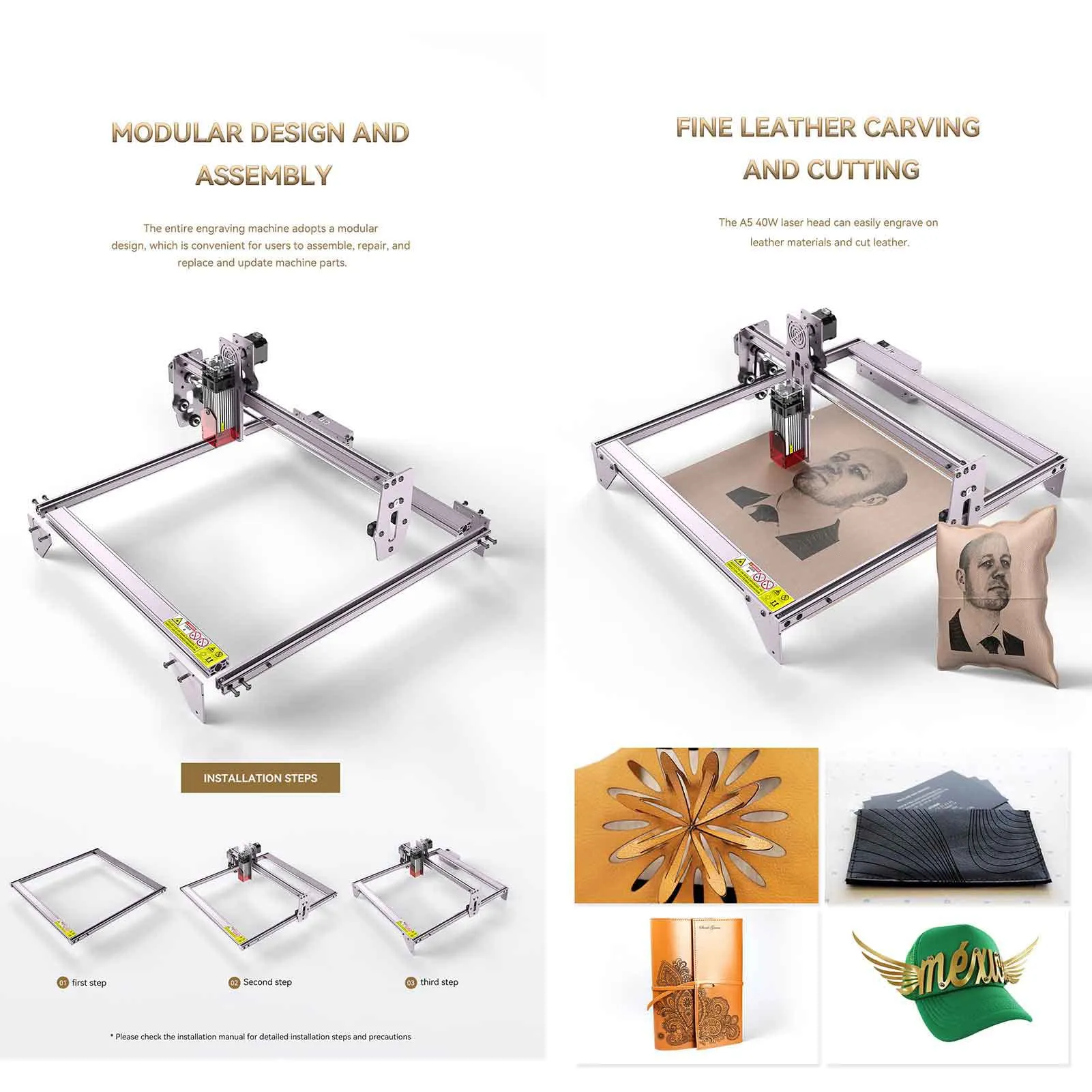

- Integrated screw rod and precision scale axis: The X axis and Y axis contain a precision scale line, which allows you to quickly perform a length measurement. The large engraving interval of 410 x 400mm can meet your different engraving needs. The machine uses an integrated threaded rod instead of a combined coupling. The stepper motor and threaded rod are integrated, which makes the laser movement more accurate and the clutch more durable.
- Wide compatibility: The machine can be compatible with various adult engraving software, such as LaserGRBL, LightBurn, support for Win XP/Win 7/Win 8/XP/Win 10 and also Mac system (LightBurn), support engraving file formats NC, BMP, JPG, PNG, DXF, etc.
