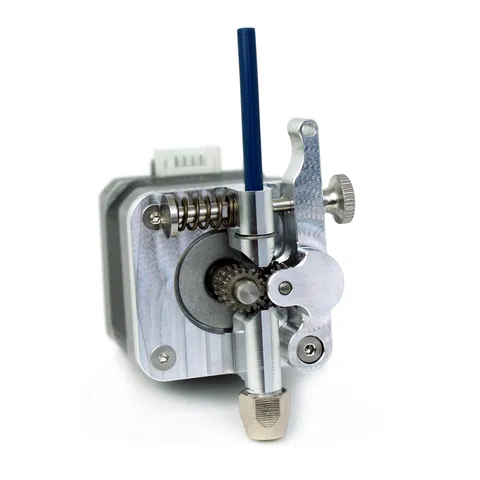

Micro Swiss' Bowden dual gear extruder features the same quality construction as their direct drive extruders. It's designed to be a bolt-on replacement to most of the Bowden extruder machines on the market.
CR-6 SE/ CR-6 Max users, see to relocate the filament sensor to the correct height. Will require additional 1 x M3x8FHCS
Features:
- Dual-drive train
- Hardened tool steel, CNC precision-cut gears
- Adjustable filament grip
- Easy filament loading
- Outstanding extrusion control
- E-steps value: 130
Fits:
- Bowden extruder machines
- Ender 3, 5, 6, CR10, CR-10s Pro, CR-10S, CR6-SE, Tornado
- Fits NEMA 17 size stepper motors
-
Printable Filament Runout Sensor Bracket Download Links:

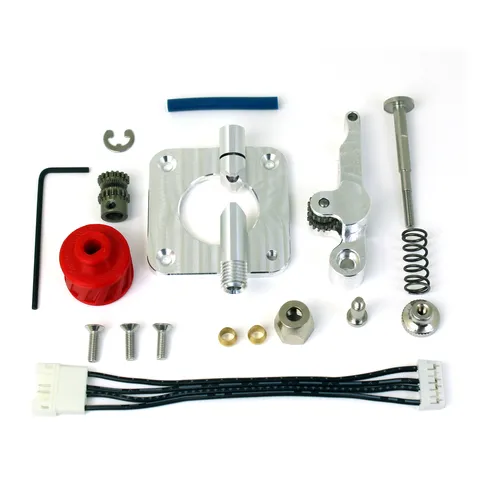

What's in the box:
- Stepper motor is NOT included!
- 1 x Main extruder body
- 1 x Extruder lever with gear
- 1 x Spring pin
- 1 x Spring
- 1 x Motor gear
- 1 x Knob
- 1 x Shoulder pin
- 1 x Reverse polarities cable
- 3 x M3x8 motor mounting screws
- 2 x Brass compression sleeves
- 1 x Compression nut
- 1 x Capricorn liner
- 1 x E-Clip retaining ring
