DESCRIPTION

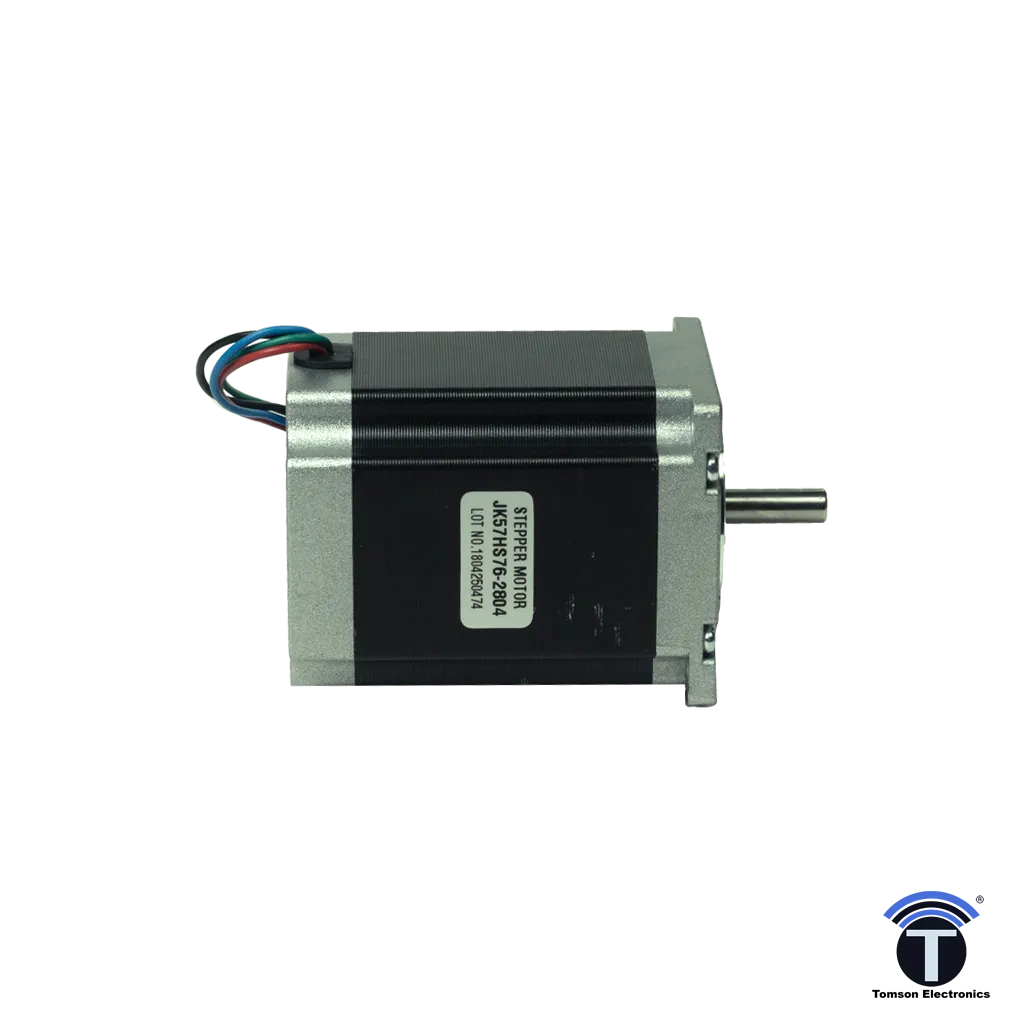

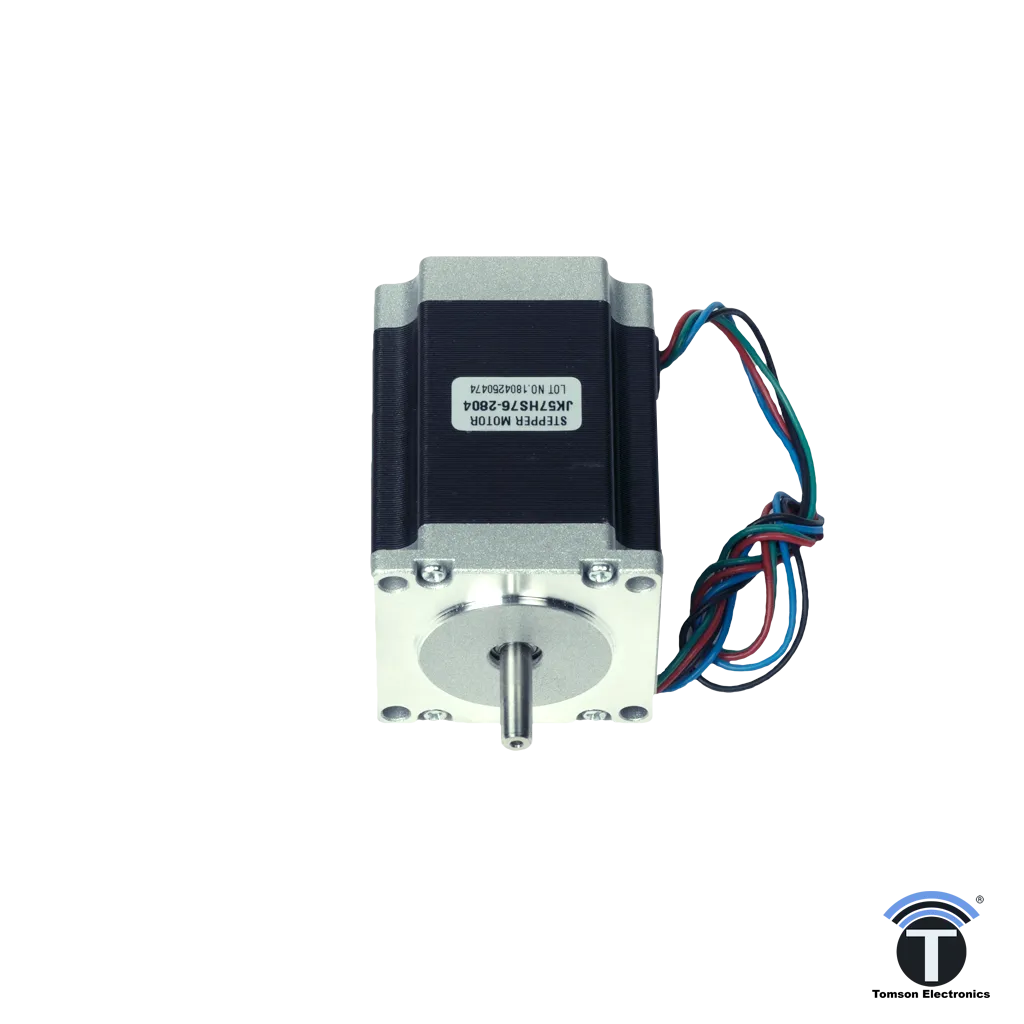

They are the special choice for heavy duty CNC machines. They overpass the NEMA17 Stepper Motors because of their inherent operational advantages including comparably high torque at high speeds. This NEMA 23 Stepper Motor is a powerhouse when it comes to larger machines that require extra torque. The NEMA 23 18.9 kg-cm Step Hybrid Stepper Motor can provide 18.9 kg-cm of torque at 2.8A current per phase.
The stepper motors move in precisely repeatable steps, hence they are the motors of choice for the machines requiring precise position control. The NEMA 23 18.9 kg-cm Hybrid Stepper Motor provides excellent response to starting, stopping and reversing pulses from stepper motor driver.
One can equip them on CNC Milling, CNC Router like application which demands extra torque than provided by NEMA17 Stepper Motors.
It is a brushless DC motor, so the life of this motor is dependent upon life of the bearings. The position control is achieved by a simple Open Loop control mechanism so doesn’t require complex electronic control circuitry.
SPECIFICATION
- Brand: JKM
- Model: JK57HS76-2804
- Motor length: 76mm/ 112mm
- The diameter of axle: 6mm/8mm
- The front shaft length: 20mm
- Size: 57mm * 57MM* 76mm / 57mm * 57mm * 112mm
- Outgoing line: 300mm (Plug is not included)
- Certification: Certification: CE,ROHS
- Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting,ect.
